Roof Rack
Product information, made easy to scan
Choose a section to review fitment, specifications, installation and shipping without scrolling through one long page.
Fitment
| Specification | Value |
|---|---|
| Brand | Land Rover |
| Vehicle | Classic Land Rover Defender 110 |
Overview

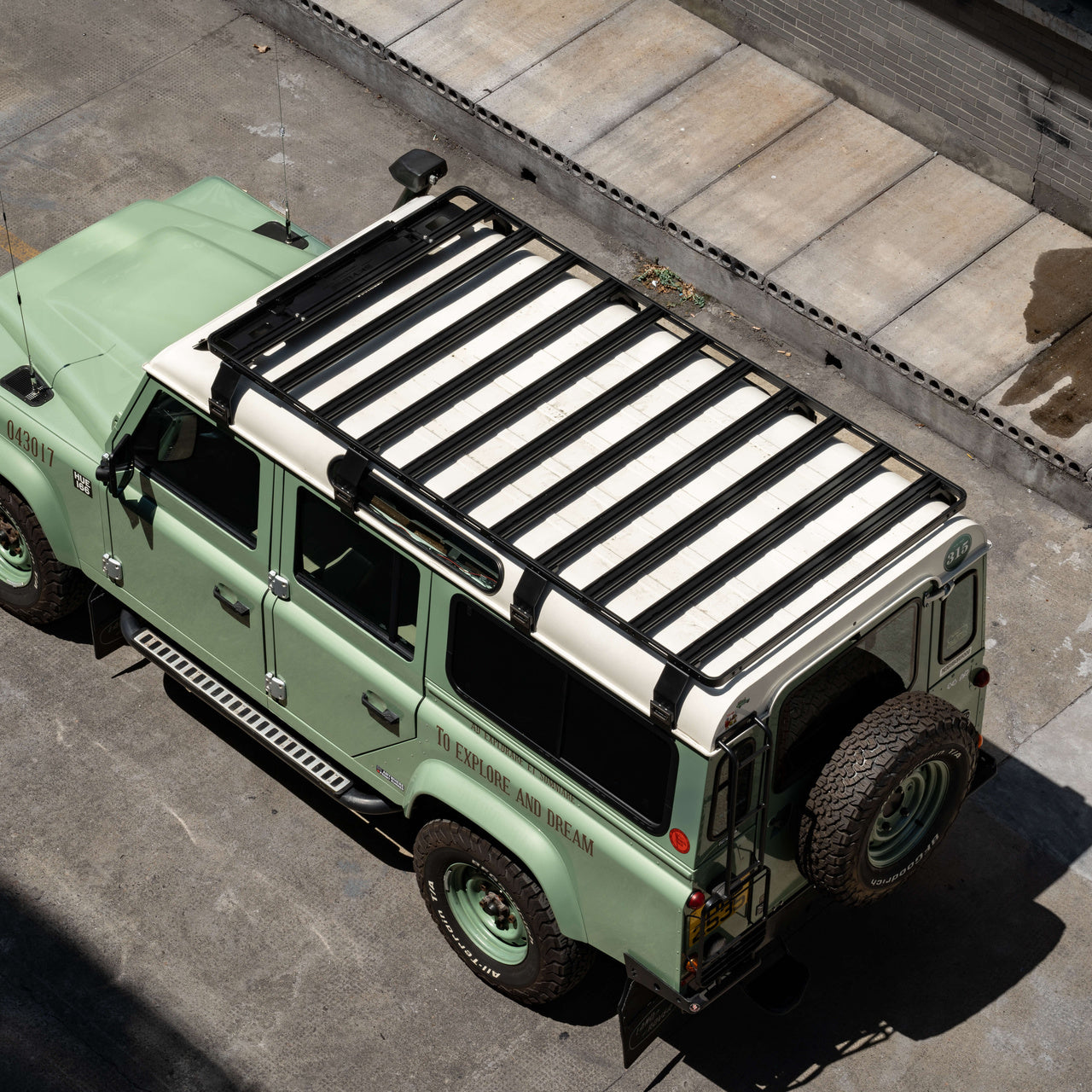

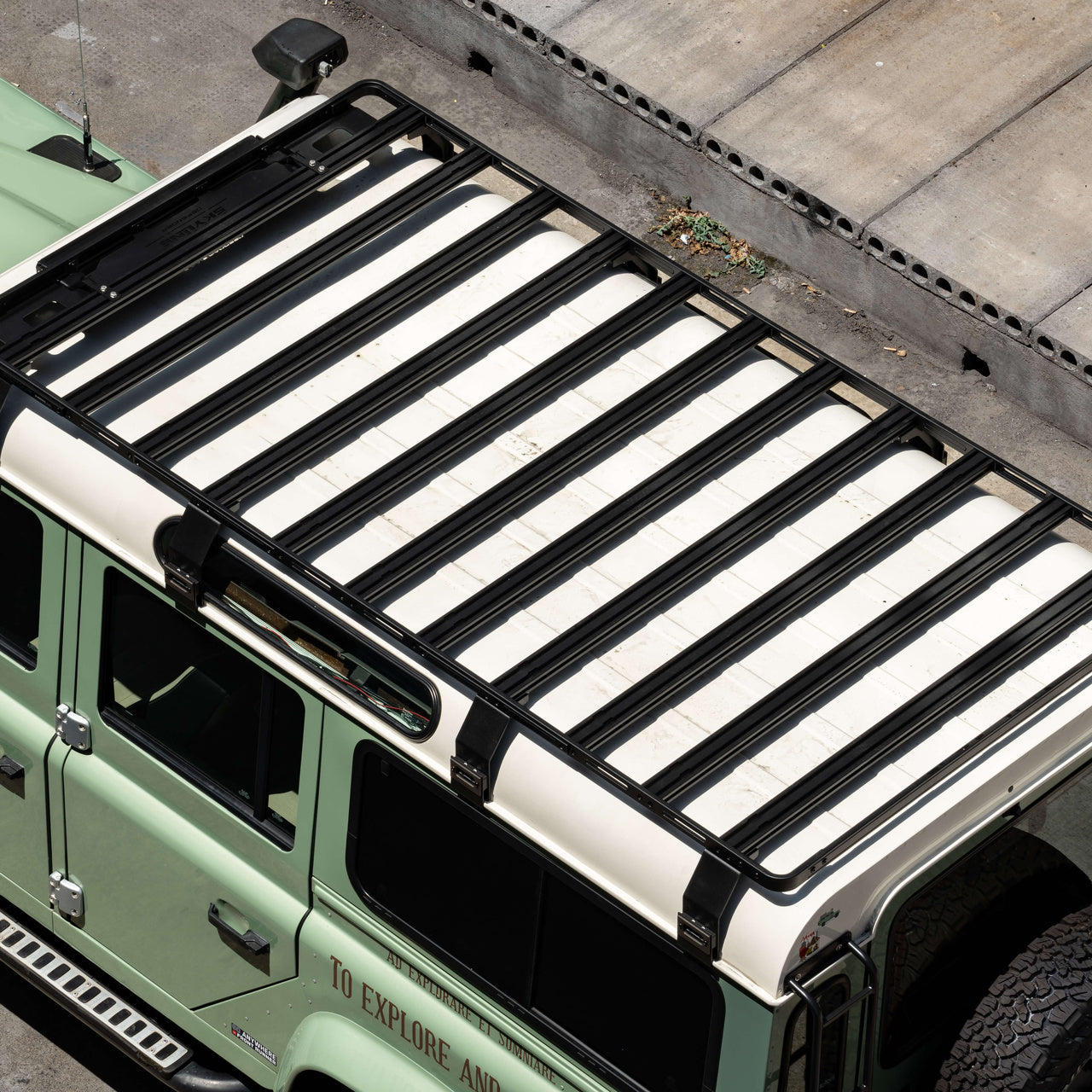

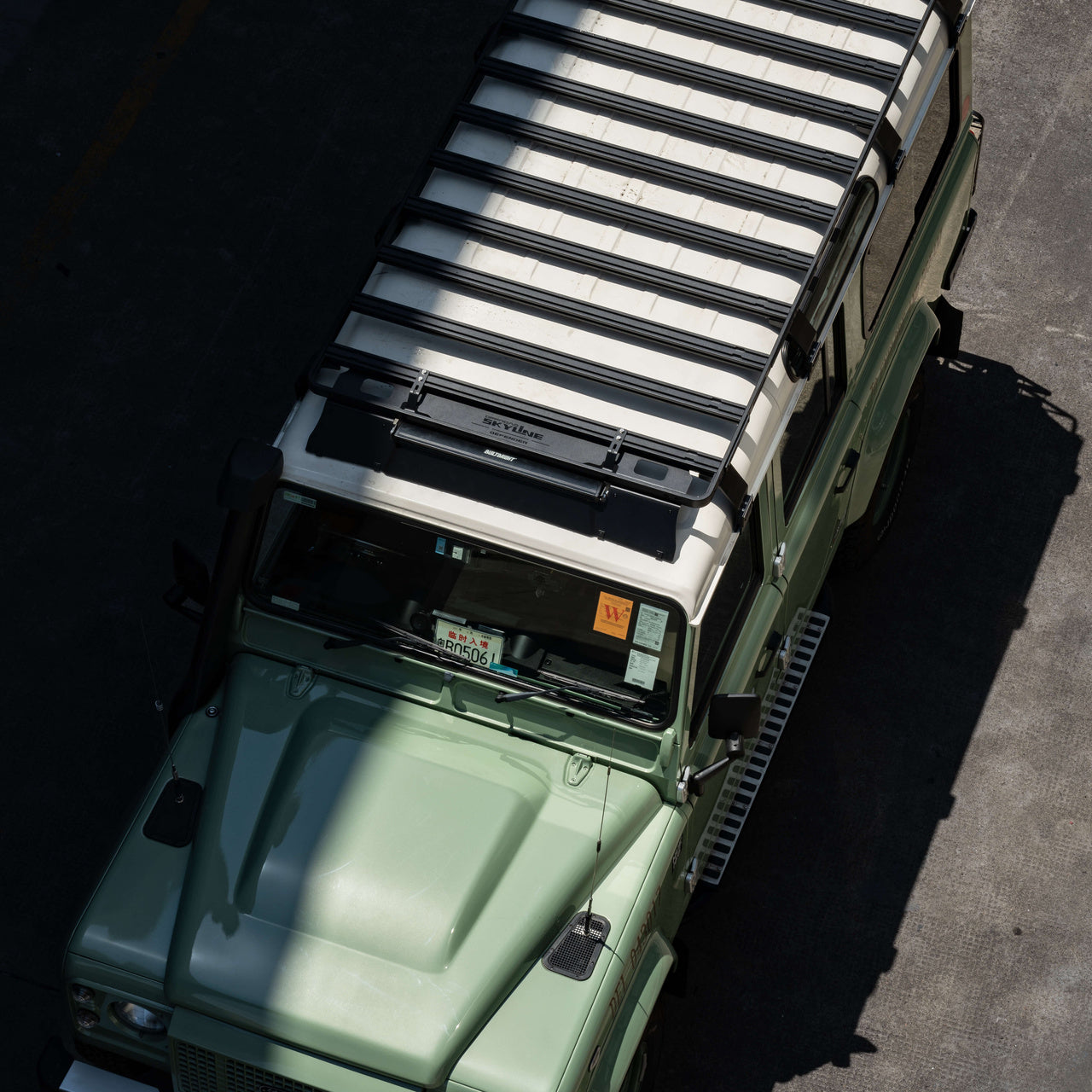

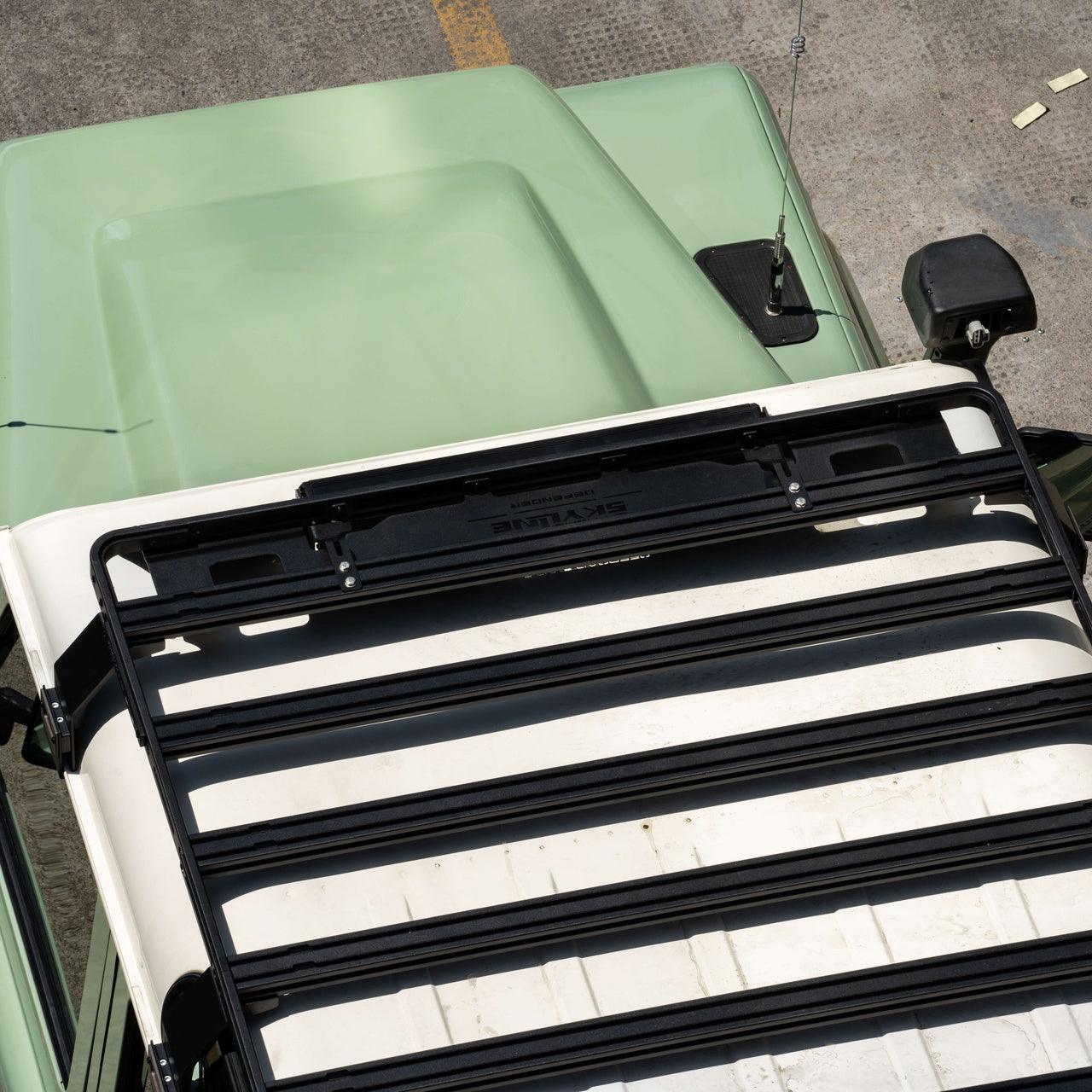

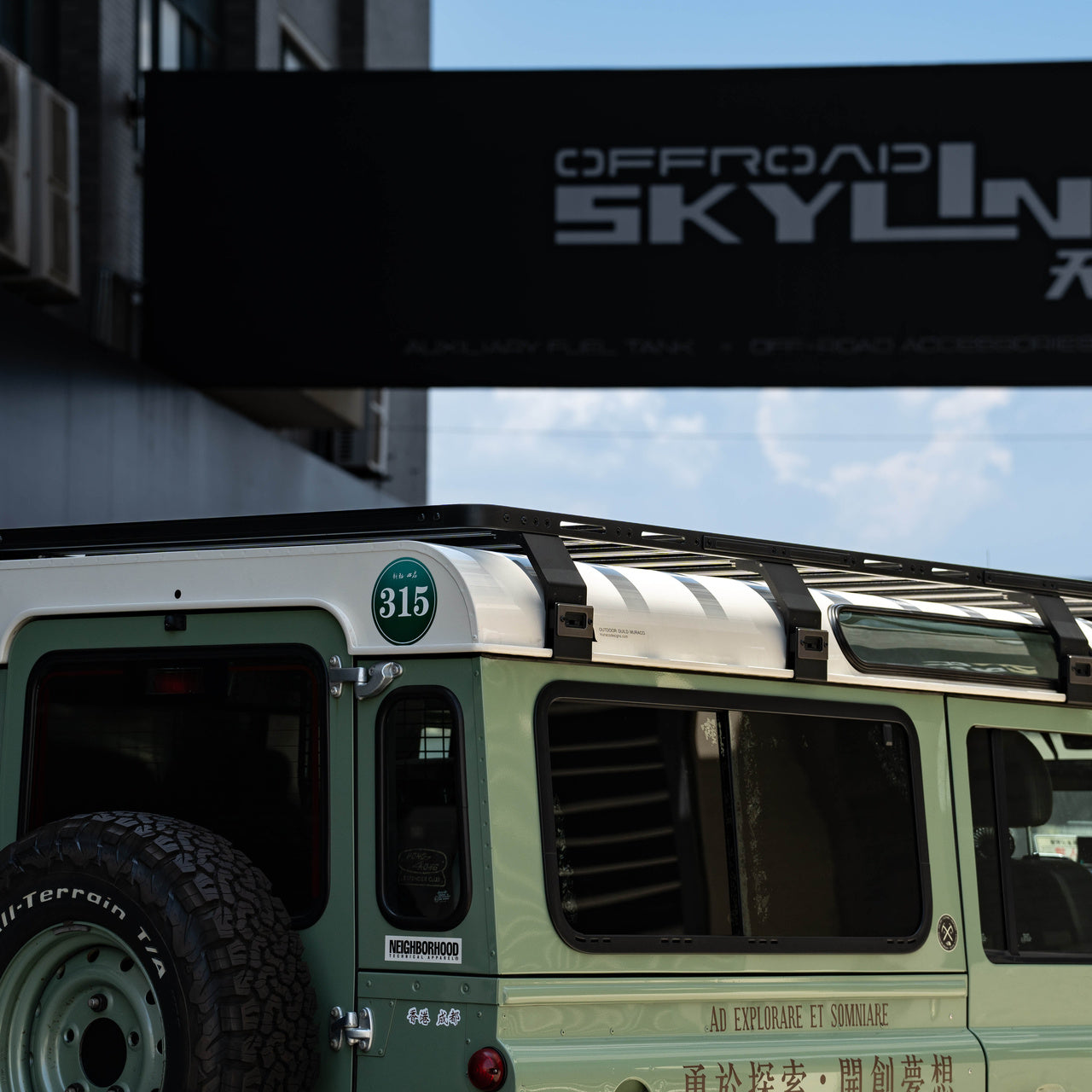

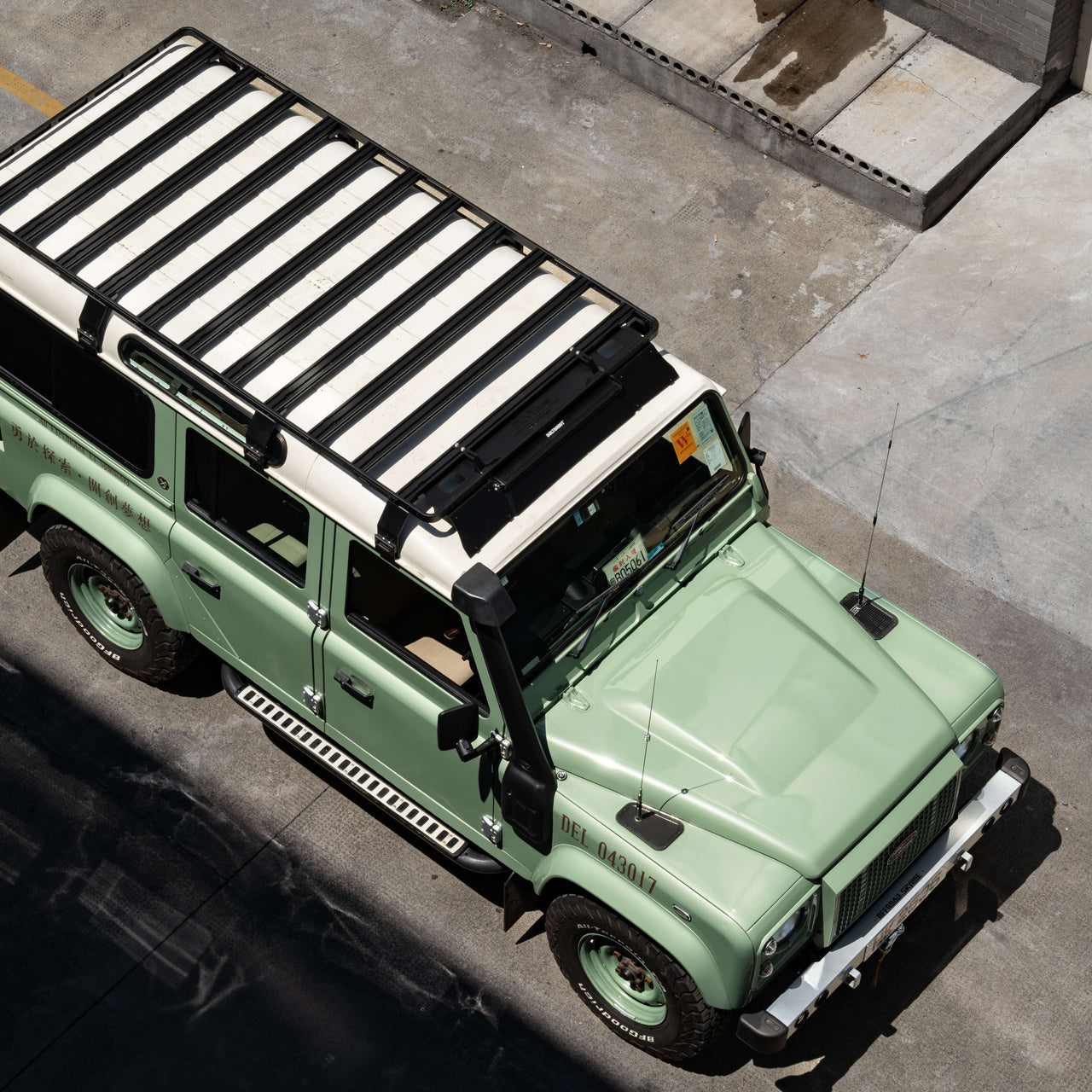

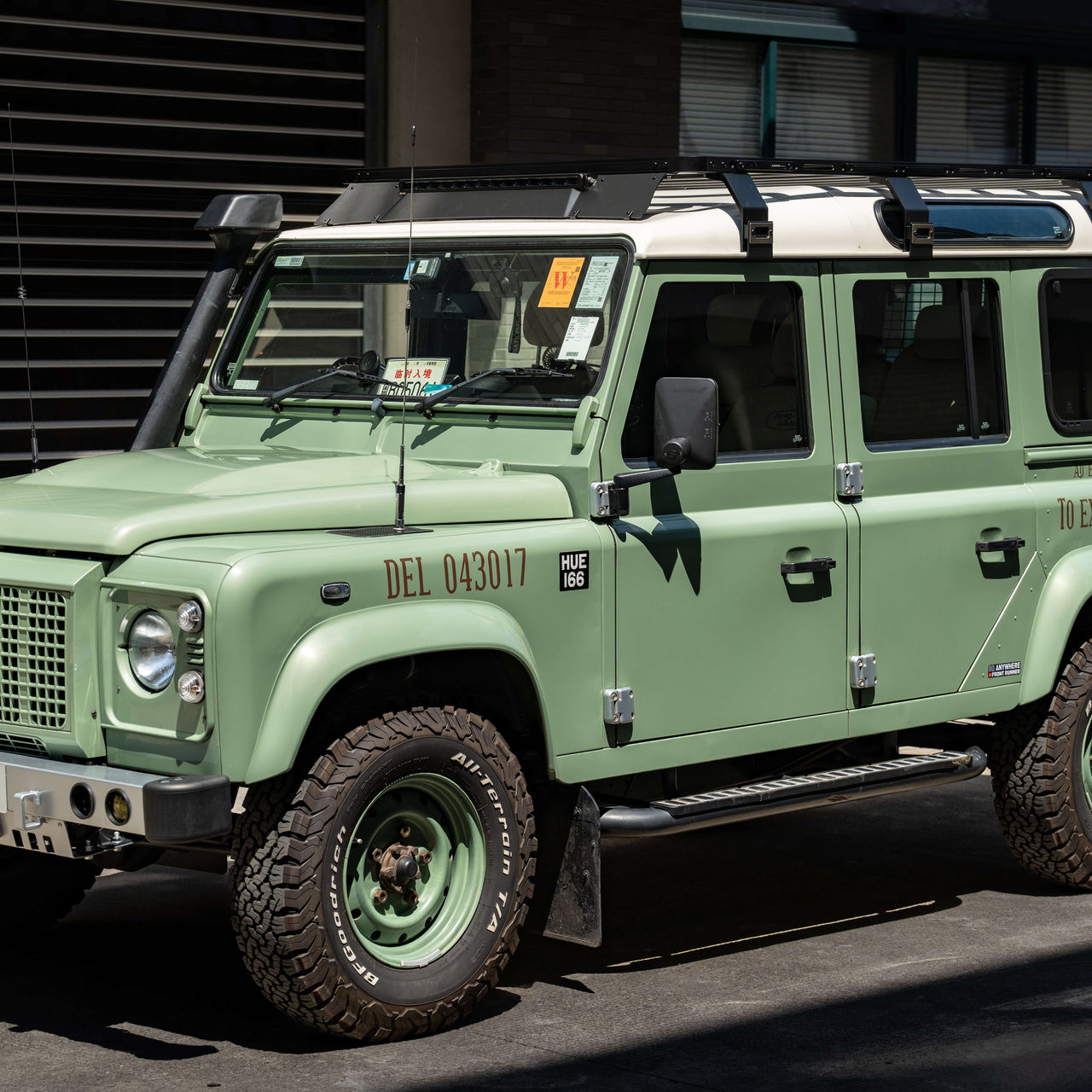

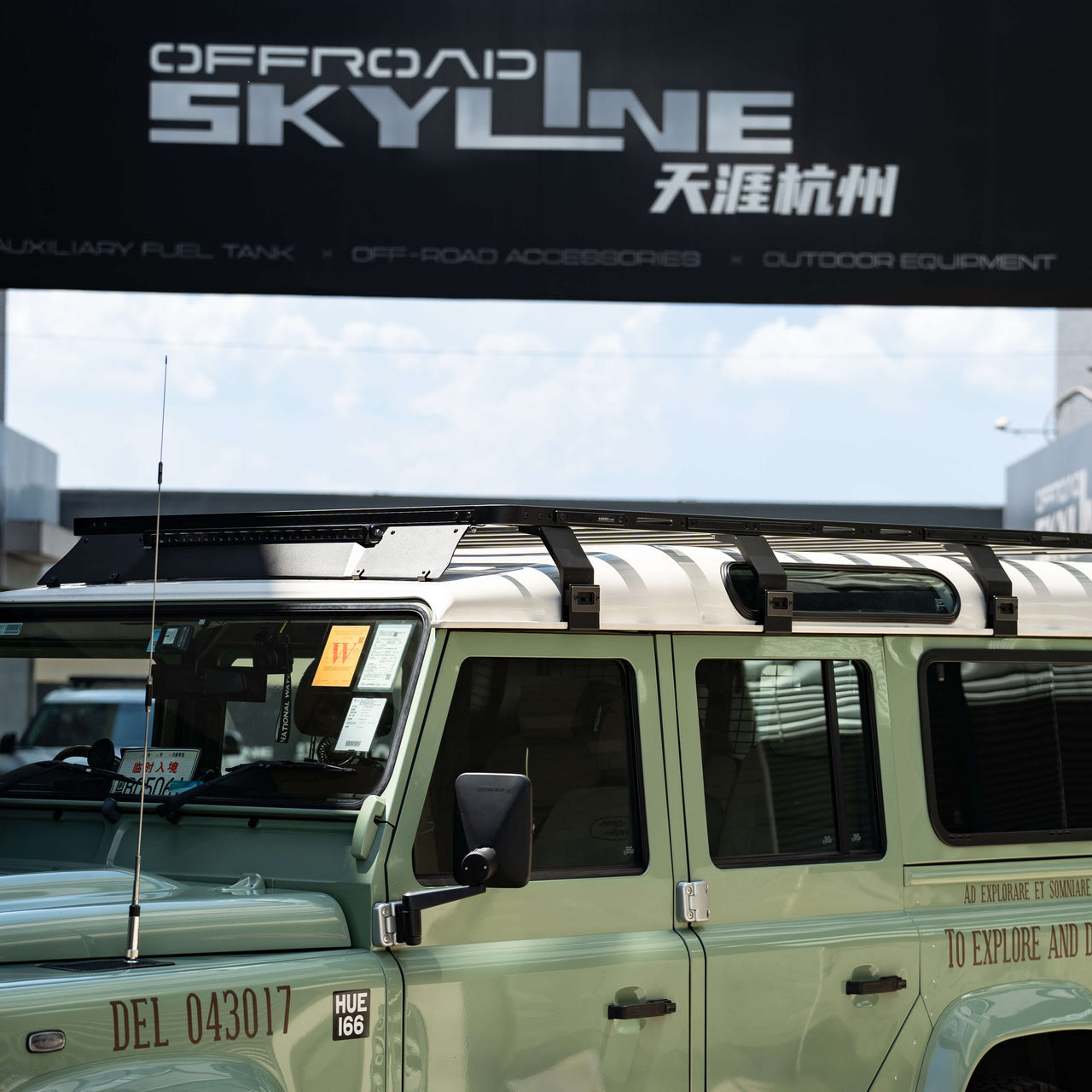

Heavy-Duty Modular Roof Platform for Classic Land Rover Defender 110. Product information is organized from the supplied specification sheet.
Key Features
| Specification | Value |
|---|---|
| Dynamic Load Rating | 150 kg (330.7 lb) |
| Finish | Textured matte-black powder coat |
| Specification | With Light Bar | Without Light Bar |
|---|---|---|
| Dimensions | 28 in |
Specifications
| Specification | Value |
|---|---|
| Included Sliding Nuts | M8*10 |
| Platform Perimeter Rail | 6061 T6 aluminum-magnesium alloy |
| Platform Crossbars | 6063 T5 aluminum-magnesium alloy |

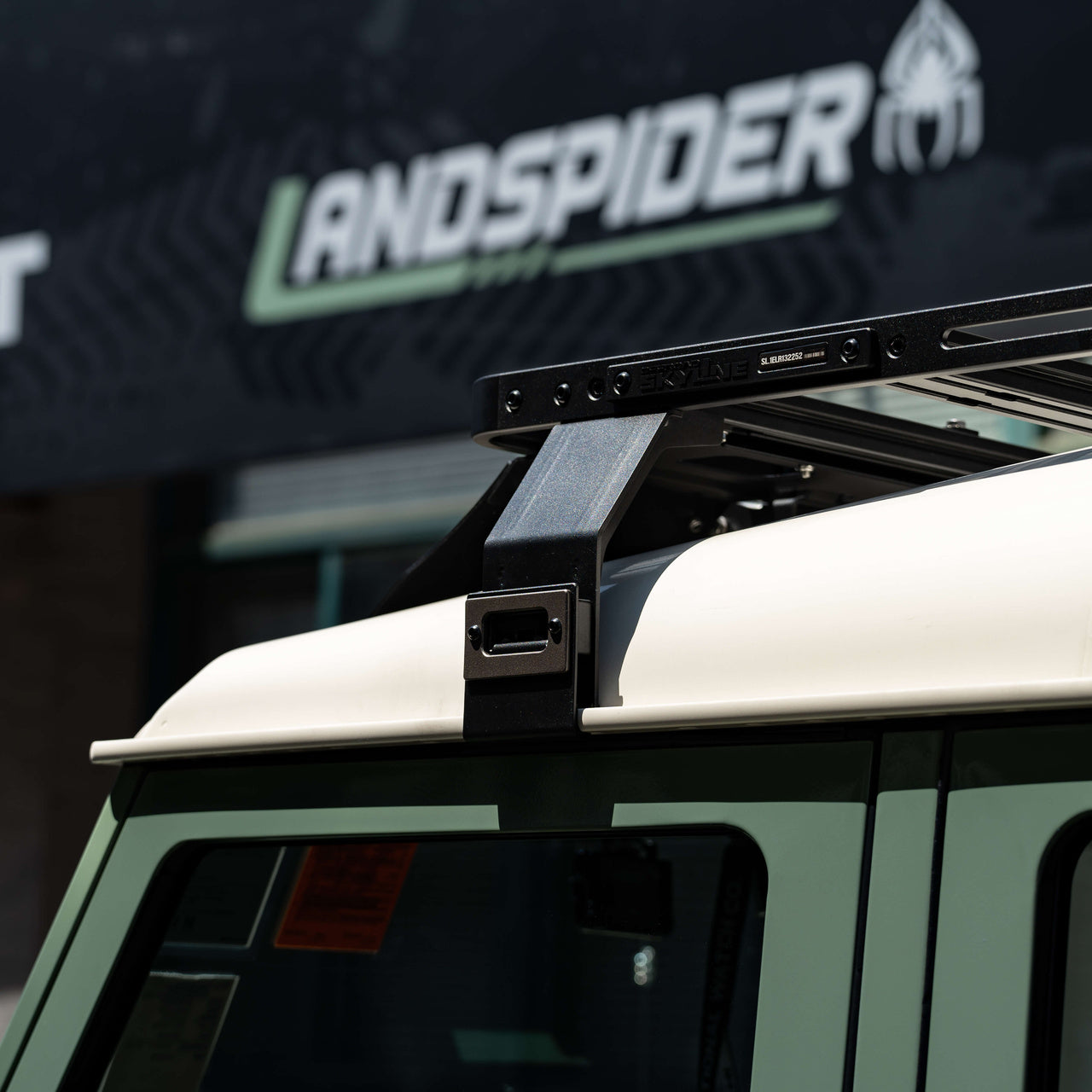

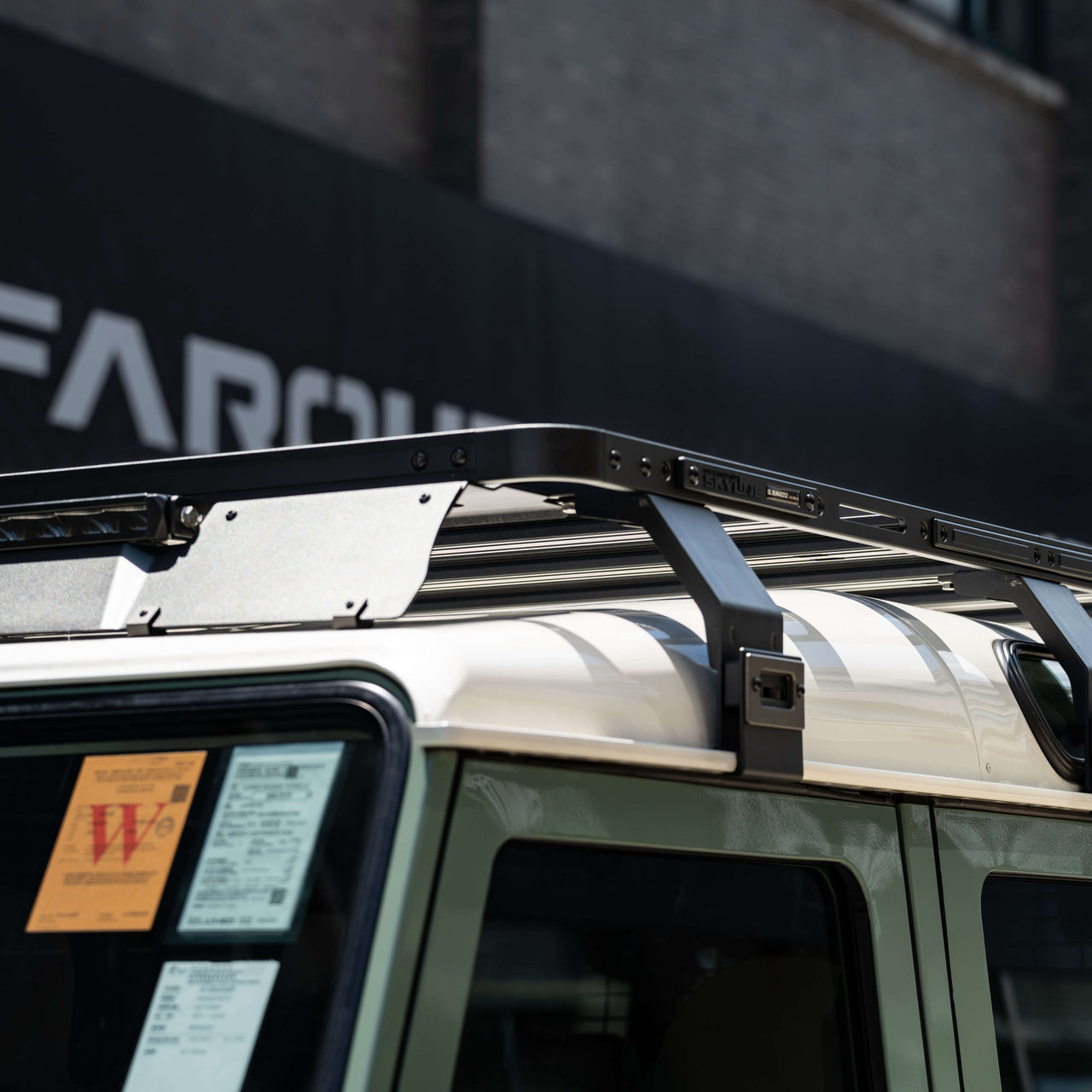

| Mounting Brackets | 430 stainless steel |
| Specification | With Light Bar | Without Light Bar |
|---|---|---|
| Light Color | White / amber light | |
| Rated Power | 168W | |
| Operating Voltage | 12-48VDC | |
| Operating Temperature | -40 to 85 °C (-40 to 185 °F) | |
| Color Temperature | White: 5700–6500 K; amber: 3500–4000 K | |
| Ingress Protection | IP67/IP69K | |
| Vibration Rating | 6G |
Installation
| Specification | Value |
|---|---|
| Installation Method | Bolt-on; no permanent vehicle modification |
| Height Above Roof | 76 mm (2.99 in) |
| Installation Guide | Available |
| Specification | With Light Bar | Without Light Bar |
|---|---|---|
| Estimated Installation Time | 3.5–4 hours | 2.5–3 hours |
Shipping
| Specification | Value |
|---|---|
| Bracket Net Weight | 14.53 kg (32 lb) |
| Platform Net Weight | 33.9 kg (74.7 lb) |
| Packaging | Corrugated carton |
| Package Dimensions | 1580 × 460 × 370 mm (62.2 × 18.1 × 14.6 in) |
| Packed Weight | 62 kg (136.7 lb) |
| Bracket Net Weight | 14.53 kg (32 lb) |
| Platform Net Weight | 33.9 kg (74.7 lb) |
SKU
ITY-DEFENDER-EP-005
