Auxiliary Fuel Tank
Product information, made easy to scan
Choose a section to review fitment, specifications, installation and shipping without scrolling through one long page.
Fitment
| Specification | Value |
|---|---|
| Brand | Tank |
| Model Year | 2021-2025 |
| Vehicle | Tank 300 |
Overview

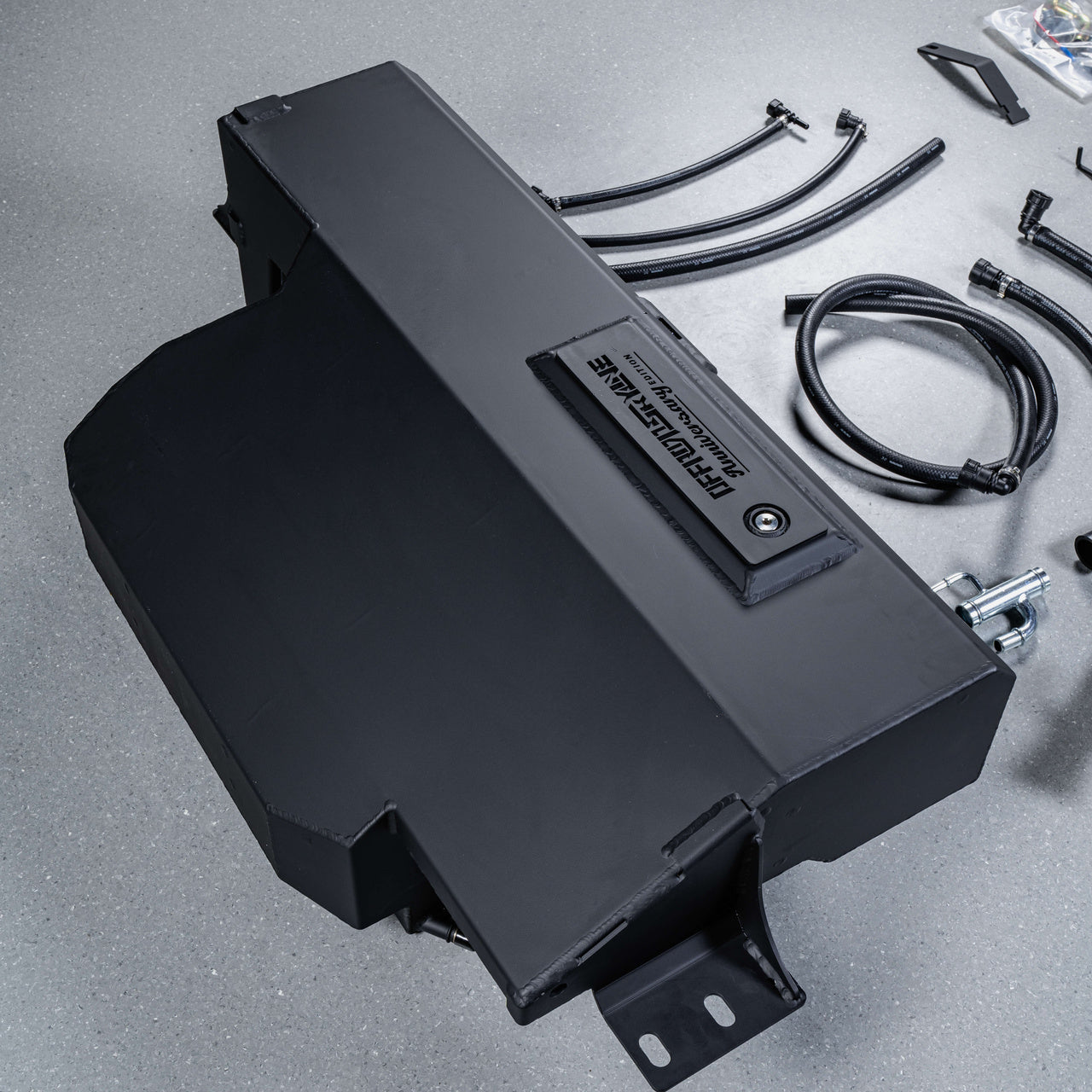

Auxiliary Fuel Tank for Tank 300. Product information is organized from the supplied specification sheet.
Key Features
| Specification | Value |
|---|---|
| Fuel Type | Gasoline |
| Capacity | 85 L (22.5 US gal) |
| Tank Type | Auxiliary Fuel Tank |

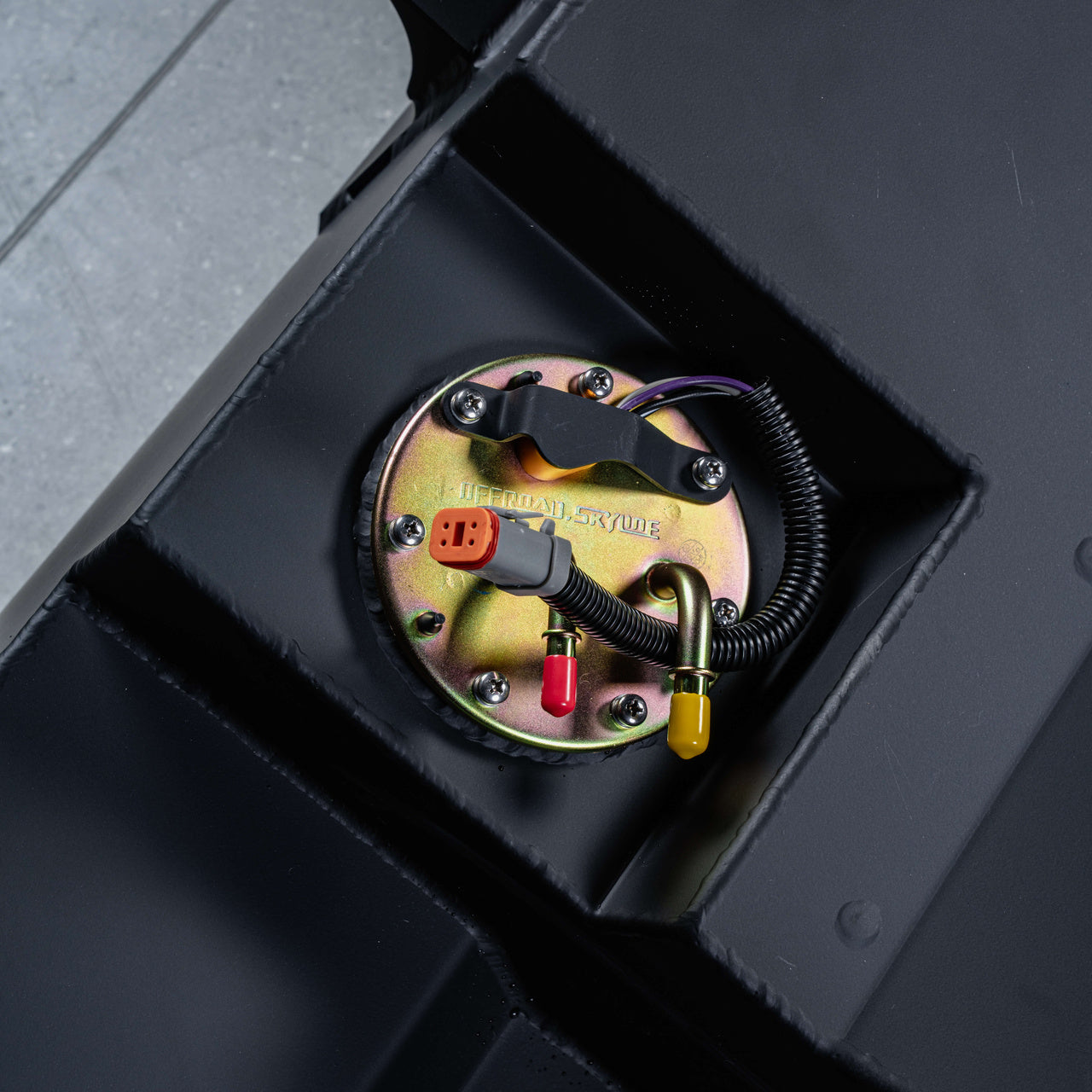

| Fuel Transfer Method | Internal transfer pump |
| Tank Material | 430 stainless steel |
| Finish | Matte-black powder coat |
Specifications
| Specification | Value |
|---|---|
| Tank Wall Thickness | bottom plate 3 mm (0.12 in) side plate 2 mm (0.08 in) |
| Bracket Thickness | 4 mm (0.16 in) 430 stainless steel |
| Welding Process | TIG welded |
| Internal Baffles | Internal anti-slosh baffles |
| Filler Neck | Dedicated filler neck |
| Pre-Shipment Pressure Tests | 2 tests |
| Pump Activation Condition | Transfer while vehicle is stationary |
| Pump Control | Mobile app / control button |
| Transfer Rate | 120 L/h (31.7 US gal/h; laboratory data) |
| Pump Stop Condition | Automatic stop when the auxiliary tank is empty or the main tank is full |
| OEM Tank Capacity | 80 L (21.1 US gal) |
| Capacity Increase | 206.3% |
| Filled Tank Mass | 103.25 kg (227.6 lb) |
Installation
| Specification | Value |
|---|---|
| Mounting Location | Spare tire location |
| Bolt-On Installation | Yes |
| Installation Guide | Available |
Shipping
| Specification | Value |
|---|---|
| Package Dimensions | 1200 × 705 × 400 mm (47.2 × 27.8 × 15.7 in) |
| Packaging | Foam-filled corrugated carton |
| Tank Net Weight | 38.65 kg (85.2 lb) |
| Packed Weight | 50.6 kg (111.6 lb) |
SKU
OS-TK300-CP-06
