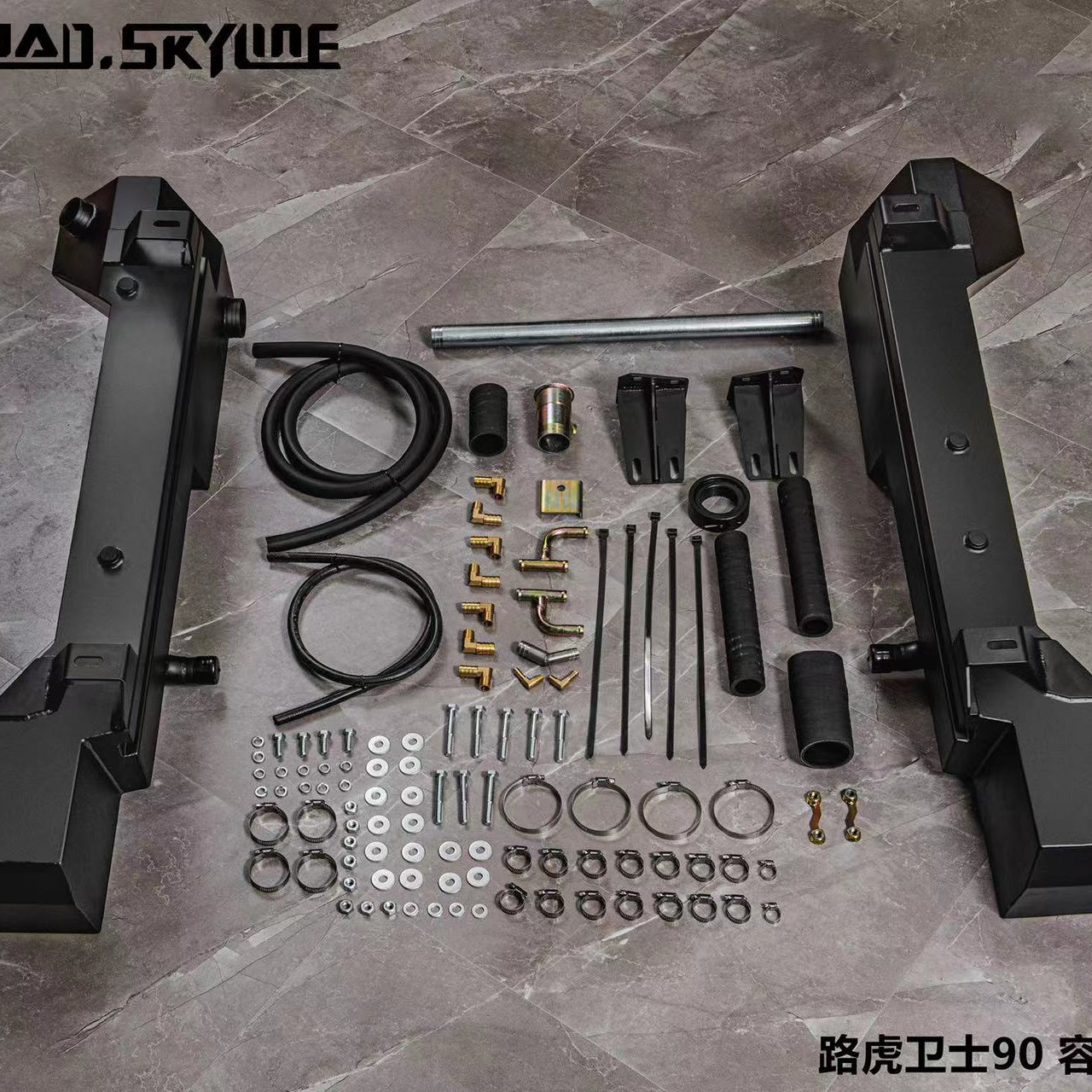

Auxiliary Fuel Tank
Product information, made easy to scan
Choose a section to review fitment, specifications, installation and shipping without scrolling through one long page.
Fitment
| Specification | Value |
|---|---|
| Brand | Land Rover |
| Vehicle | Classic Land Rover Defender 90 |
Overview
Auxiliary Fuel Tank for Classic Land Rover Defender 90. Product information is organized from the supplied specification sheet.
Key Features
| Specification | Value |
|---|---|
| Fuel Type | Diesel |
| Capacity | 55 L (14.5 US gal) |
| Tank Type | Auxiliary Fuel Tank |
| Fuel Transfer Method | Gravity feed |
| Tank Material | 430 stainless steel |
| Finish | Matte-black powder coat |
Specifications
| Specification | Value |
|---|---|
| Tank Wall Thickness | bottom plate 3 mm (0.12 in) side plate 2 mm (0.08 in) |
| Bracket Thickness | 4 mm (0.16 in) 430 stainless steel |
| Welding Process | TIG welded |
| Internal Baffles | Internal anti-slosh baffles |
| Filler Neck | Replacement OEM filler neck |
| Pre-Shipment Pressure Tests | 2 tests |
| OEM Tank Capacity | 80 L (21.1 US gal) |
| Capacity Increase | 168.8% |
| Filled Tank Mass | 71 kg (156.5 lb) |
Installation
| Specification | Value |
|---|---|
| Mounting Location | Side mounting location |
| Bolt-On Installation | Yes |
Shipping
| Specification | Value |
|---|---|
| Package Dimensions | 1340 × 515 × 450 mm (52.8 × 20.3 × 17.7 in) |
| Packaging | Foam-filled corrugated carton |
| Tank Net Weight | 29.2 kg (64.4 lb) |
| Packed Weight | 55.4 kg (122.1 lb) |
SKU
OS-DEFENDER-CP-002
