Auxiliary Fuel Tank
Product information, made easy to scan
Choose a section to review fitment, specifications, installation and shipping without scrolling through one long page.
Fitment
| Specification | Value |
|---|---|
| Brand | Jeep |
| Model Year | 2020 |
| Vehicle | Jeep Wrangler JL 3.0TV6 |
Overview

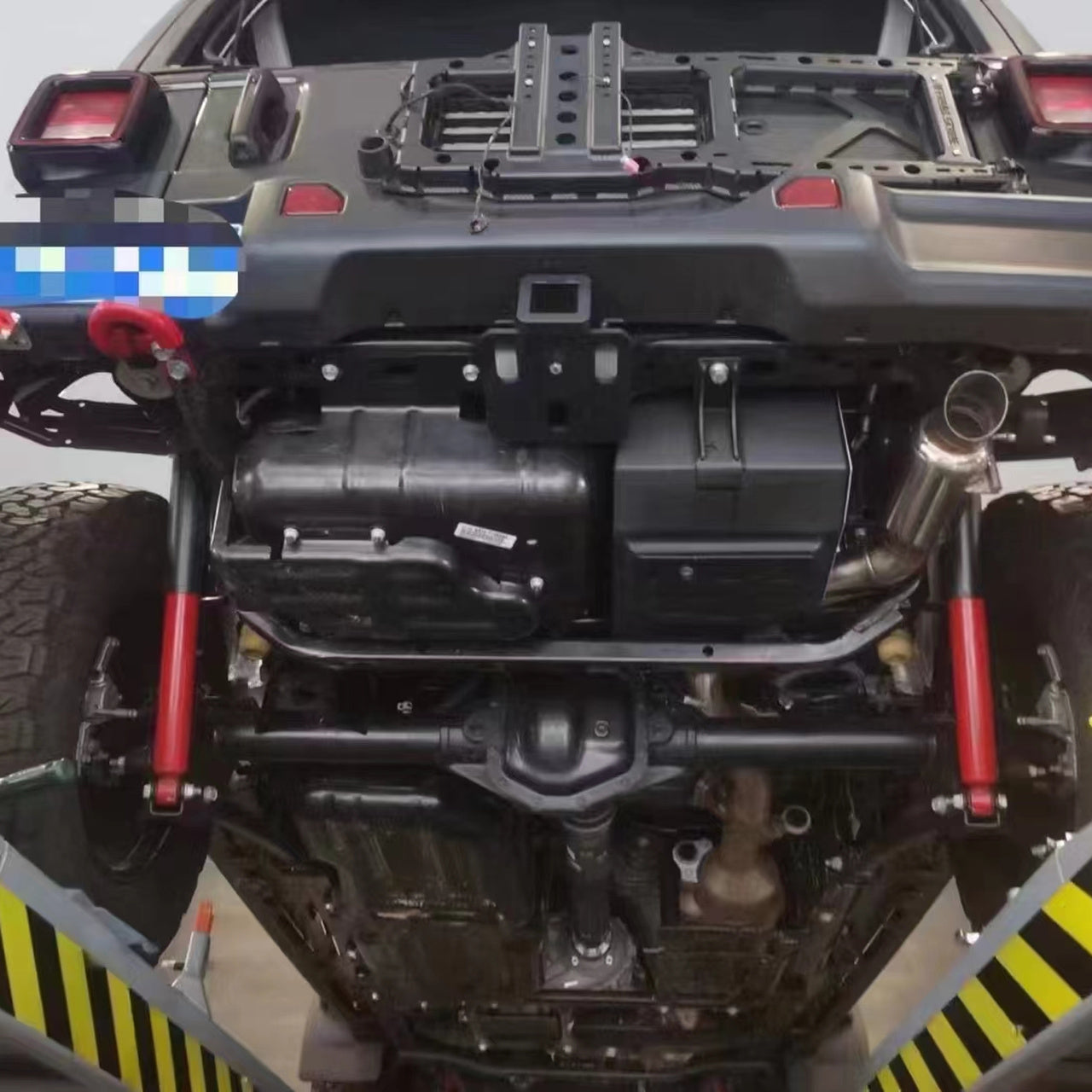

Auxiliary Fuel Tank for Jeep Wrangler JL 3.0TV6. Product information is organized from the supplied specification sheet.
Key Features
| Specification | Value |
|---|---|
| Fuel Type | Diesel |
| Capacity | 52 L (13.7 US gal) |
| Tank Type | Auxiliary Fuel Tank |
| Fuel Transfer Method | External transfer pump |
| Tank Material | 430 stainless steel |
| Finish | Matte-black powder coat |
Specifications
| Specification | Value |
|---|---|
| Tank Wall Thickness | bottom plate 3 mm (0.12 in) side plate 2 mm (0.08 in) |
| Bracket Thickness | 4 mm (0.16 in) 430 stainless steel |
| Welding Process | TIG welded |
| Internal Baffles | Internal anti-slosh baffles |
| Filler Neck | OEM filler neck with tee fitting |
| Pre-Shipment Pressure Tests | 2 tests |
| Pump Activation Condition | Transfer while vehicle is stationary |
| Pump Control | Mobile app / control button |
| Transfer Rate | 120 L/h (31.7 US gal/h; laboratory data) |
| Pump Stop Condition | Manual stop when filling the main tank; automatic stop after 2 minutes when the auxiliary tank is empty |
| OEM Tank Capacity | 69.3 L (18.3 US gal) |
| Capacity Increase | 175% |
| Filled Tank Mass | 67.52 kg (148.9 lb) |
Installation
| Specification | Value |
|---|---|
| Mounting Location | Below cargo floor |
| Bolt-On Installation | No |
| Installation Guide | Available |
Shipping
| Specification | Value |
|---|---|
| Package Dimensions | 1055 × 650 × 400 mm (41.5 × 25.6 × 15.7 in) |
| Packaging | Foam-filled corrugated carton |
| Tank Net Weight | 28 kg (61.7 lb) |
| Packed Weight | 42 kg (92.6 lb) |
SKU
OS-JL-CP-008
