PURCHASE / FREIGHT QUOTE
Ready to request a quote?
Select the product options and quantity, add them to your quote list, then provide the destination. We will confirm the freight cost and send a secure payment link.
Ships from our China warehouse under DAP terms. Import clearance, duties, import taxes and destination charges are payable by the recipient.
Auxiliary Fuel Tank
Product information, made easy to scan
Choose a section to review fitment, specifications, installation and shipping without scrolling through one long page.
Fitment
| Specification | Value |
|---|---|
| Brand | Dodge |
| Model Year | 2019-2023 |
| Vehicle | Ram |
Overview

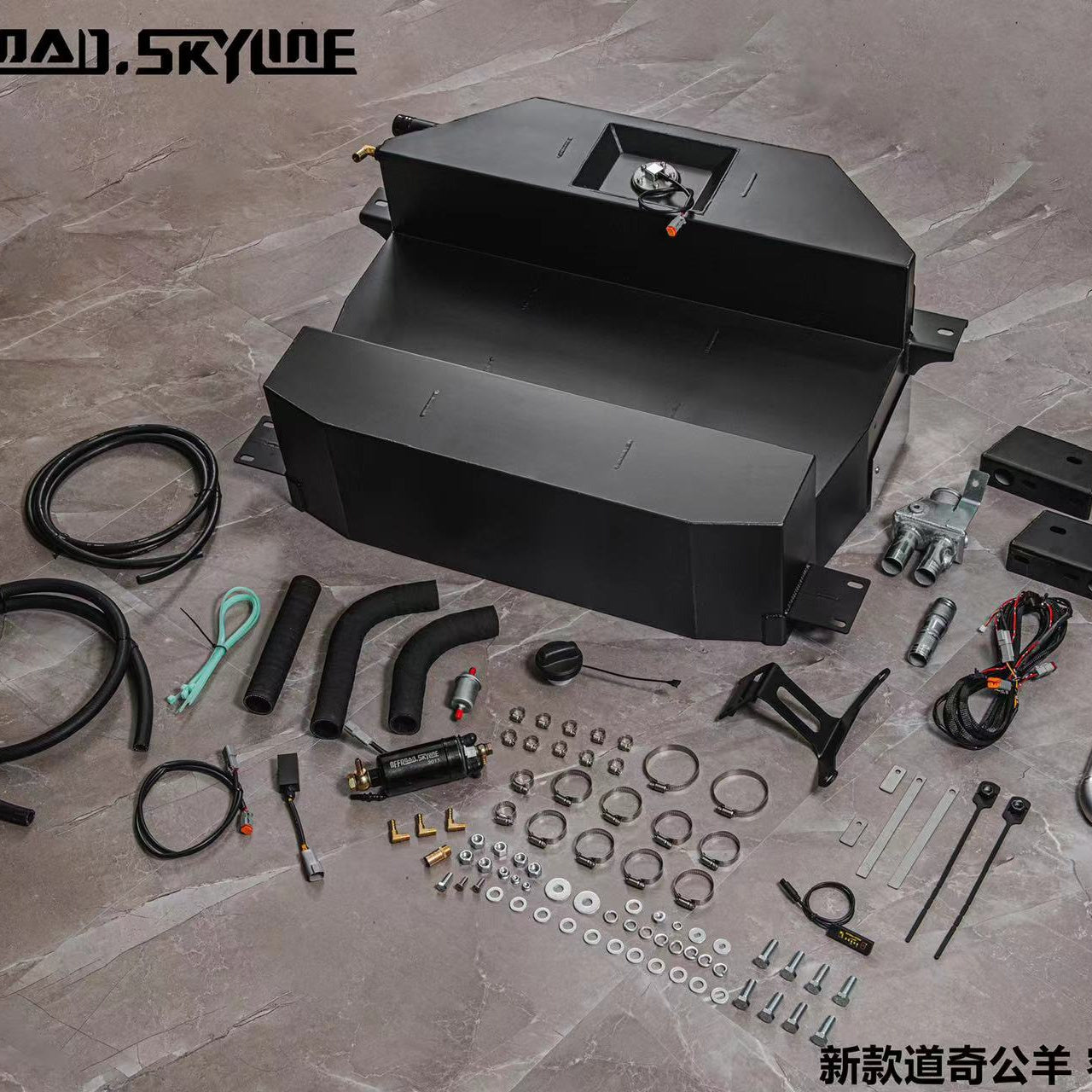

Auxiliary Fuel Tank for Dodge Ram. Product information is organized from the supplied specification sheet.
Key Features
| Specification | Value |
|---|---|
| Fuel Type | Gasoline |
| Capacity | 156 L (41.2 US gal) |
| Tank Type | Auxiliary Fuel Tank |
| Fuel Transfer Method | External transfer pump |
| Tank Material | 430 stainless steel |
| Finish | Matte-black powder coat |
Specifications
| Specification | Value |
|---|---|
| Tank Wall Thickness | bottom plate 3 mm (0.12 in) side plate 2 mm (0.08 in) |
| Bracket Thickness | 4 mm (0.16 in) 430 stainless steel |
| Welding Process | TIG welded |
| Internal Baffles | Internal anti-slosh baffles |
| Filler Neck | OEM filler neck |
| Pre-Shipment Pressure Tests | 2 tests |
| Pump Activation Condition | Transfer while vehicle is stationary |
| Pump Control | Mobile app / control button |
| Transfer Rate | 120 L/h (31.7 US gal/h; laboratory data) |
| Pump Stop Condition | Manual stop when filling the main tank; automatic stop after 2 minutes when the auxiliary tank is empty |
| Capacity Increase | 259%-225% |
| Filled Tank Mass | 172.16 kg (379.5 lb) |
Installation
| Specification | Value |
|---|---|
| Mounting Location | Spare tire location |
| Bolt-On Installation | No |
Shipping
| Specification | Value |
|---|---|
| Package Dimensions | 1140 × 840 × 485 mm (44.9 × 33.1 × 19.1 in) |
| Packaging | Foam-filled corrugated carton |
| Tank Net Weight | 53.6 kg (118.2 lb) |
| Packed Weight | 71 kg (156.5 lb) |
SKU
OS-RAM-CP-002
