PURCHASE / FREIGHT QUOTE
Ready to request a quote?
Select the product options and quantity, add them to your quote list, then provide the destination. We will confirm the freight cost and send a secure payment link.
Ships from our China warehouse under DAP terms. Import clearance, duties, import taxes and destination charges are payable by the recipient.

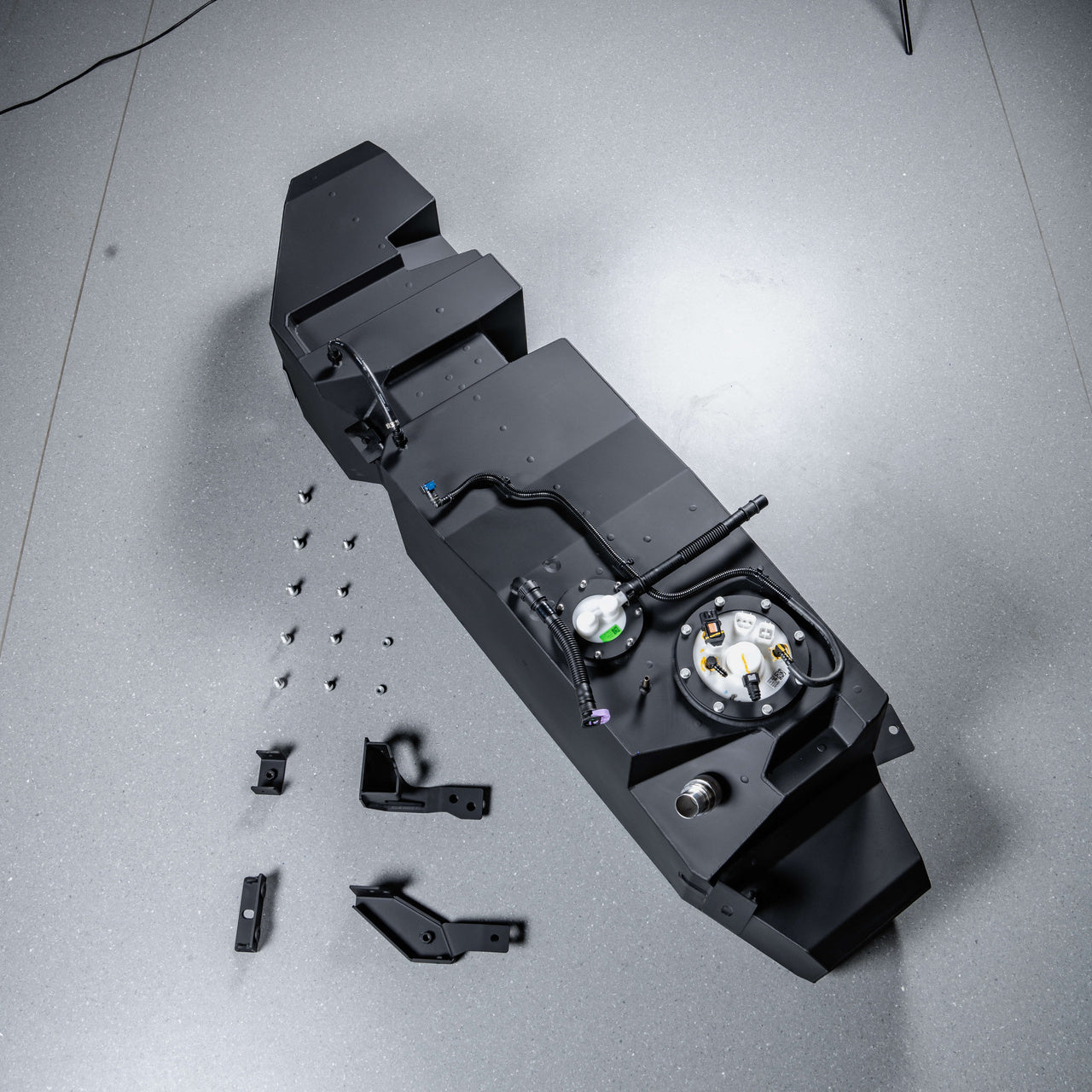

Replacement Main Fuel Tank
Product information, made easy to scan
Choose a section to review fitment, specifications, installation and shipping without scrolling through one long page.
Fitment
| Specification | Value |
|---|---|
| Brand | Toyota |
| Model Year | 2022-2025 |
| Vehicle | Toyota Sequoia (All Models) |
Overview
Replacement Main Fuel Tank for Toyota Sequoia (All Models). Product information is organized from the supplied specification sheet.
Key Features
| Specification | Value |
|---|---|
| Fuel Type | Gasoline |
| Capacity | 142 L (37.5 US gal) |
| Tank Type | Replacement Main Fuel Tank |

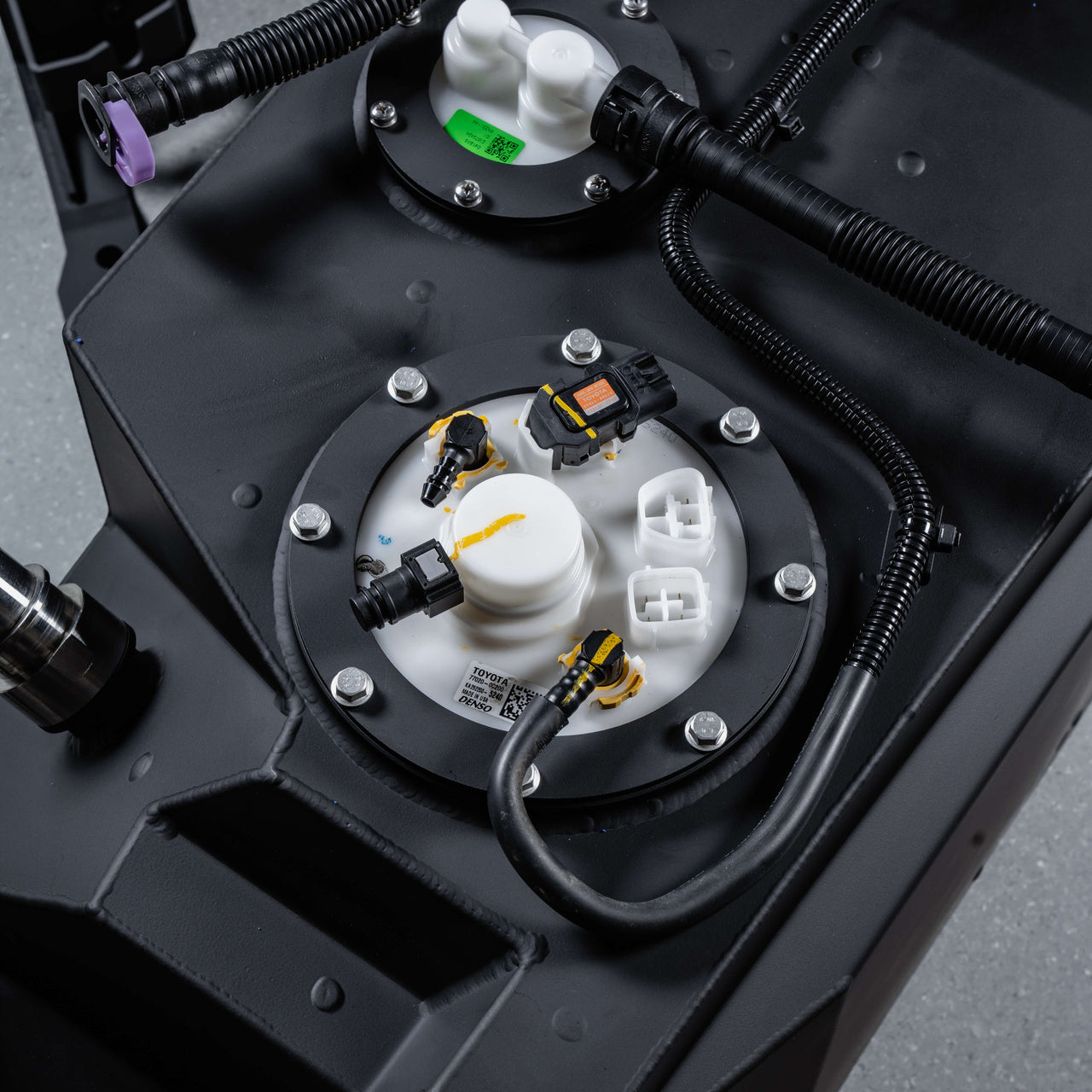

| Fuel Transfer Method | OEM fuel pump |
| Tank Material | 430 stainless steel |
| Finish | Matte-black powder coat |
Specifications
| Specification | Value |
|---|---|
| Tank Wall Thickness | bottom plate 3 mm (0.12 in) side plate 2 mm (0.08 in) |

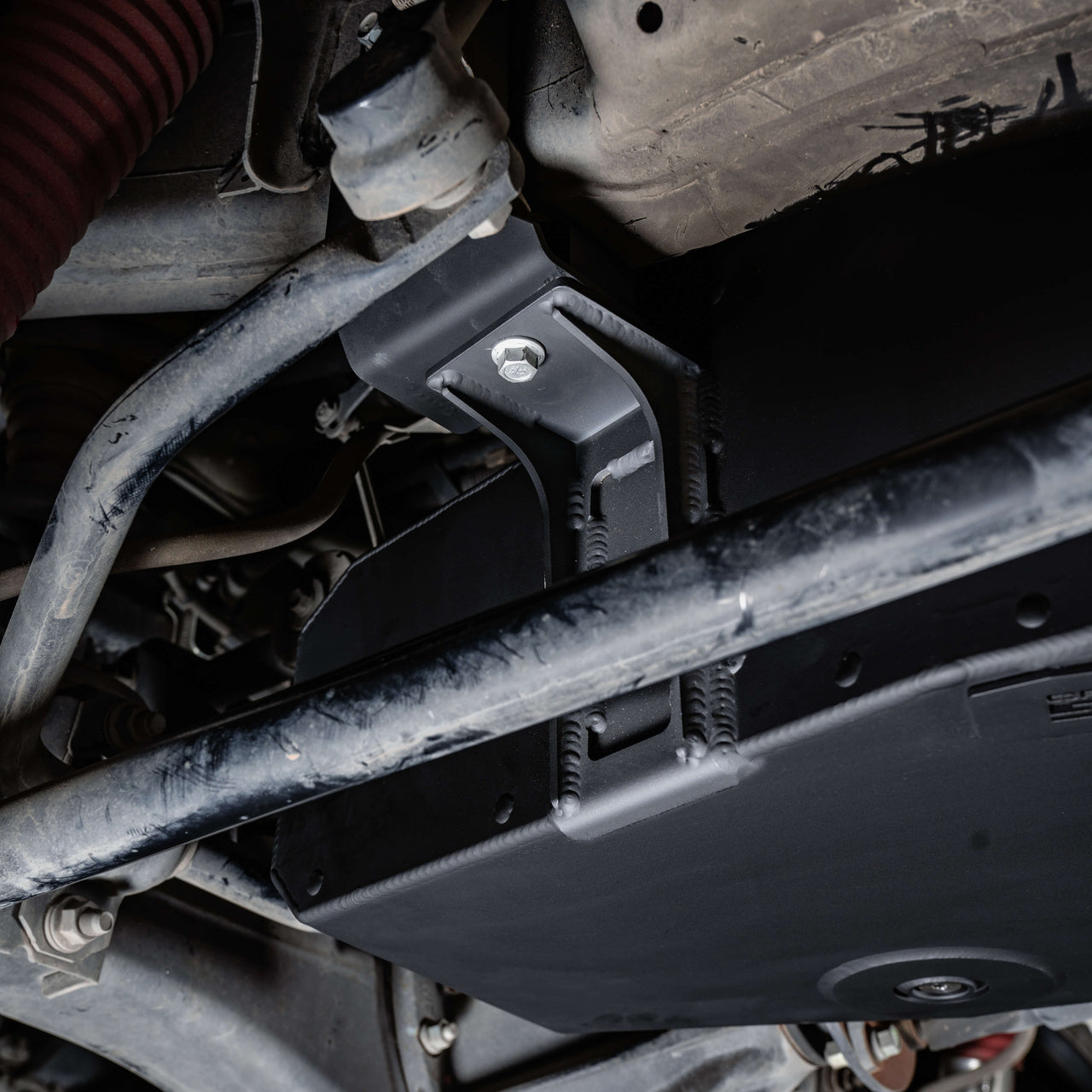

| Bracket Thickness | 4 mm (0.16 in) 430 stainless steel |
| Welding Process | TIG welded |
| Internal Baffles | Internal anti-slosh baffles |

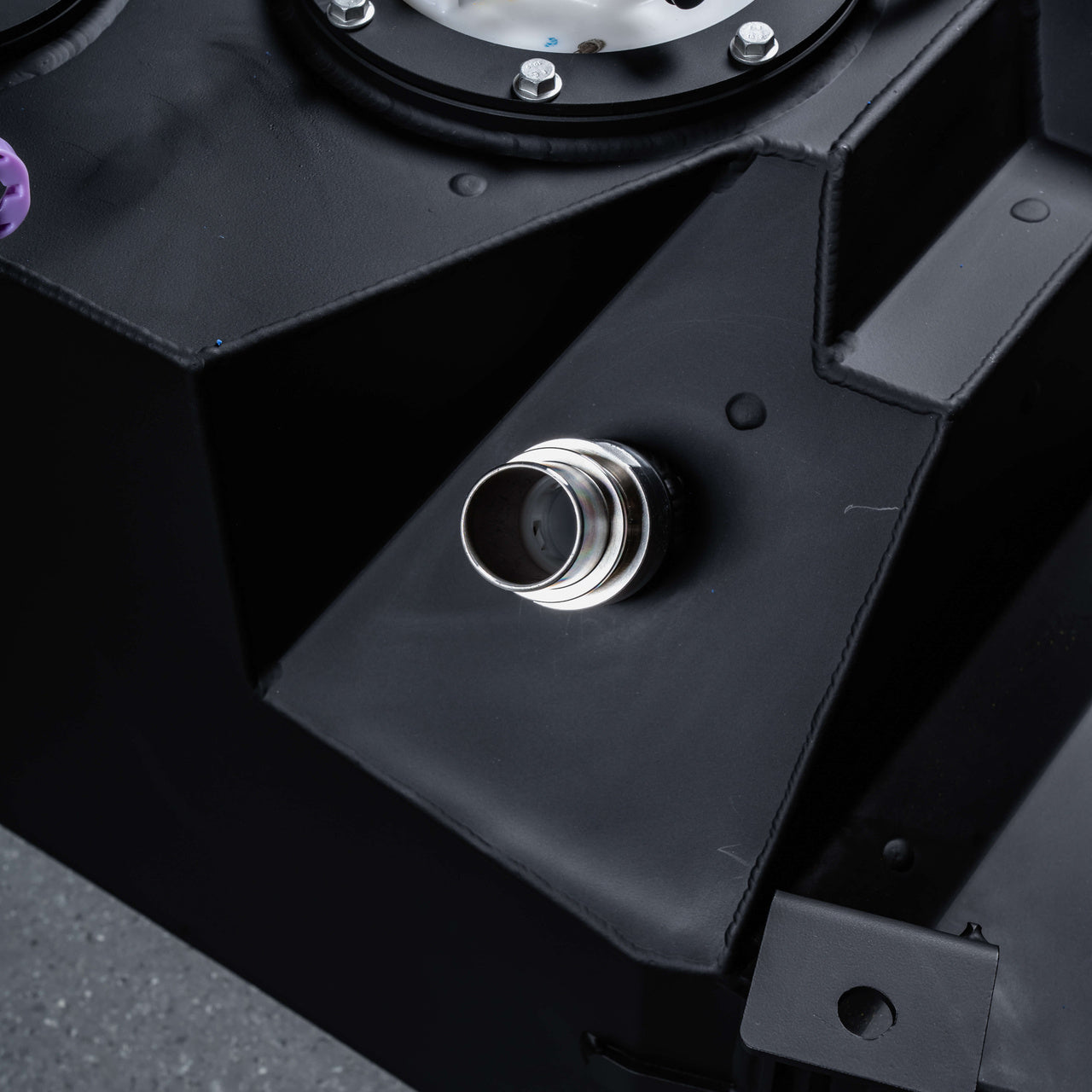

| Filler Neck | OEM filler neck |
| Refueling Method | Same as OEM refueling procedure |
| Pre-Shipment Pressure Tests | 2 tests |
| Capacity Increase | 42%-67% |
| Filled Tank Mass | 159.42 kg (351.5 lb) |
Installation
| Specification | Value |
|---|---|

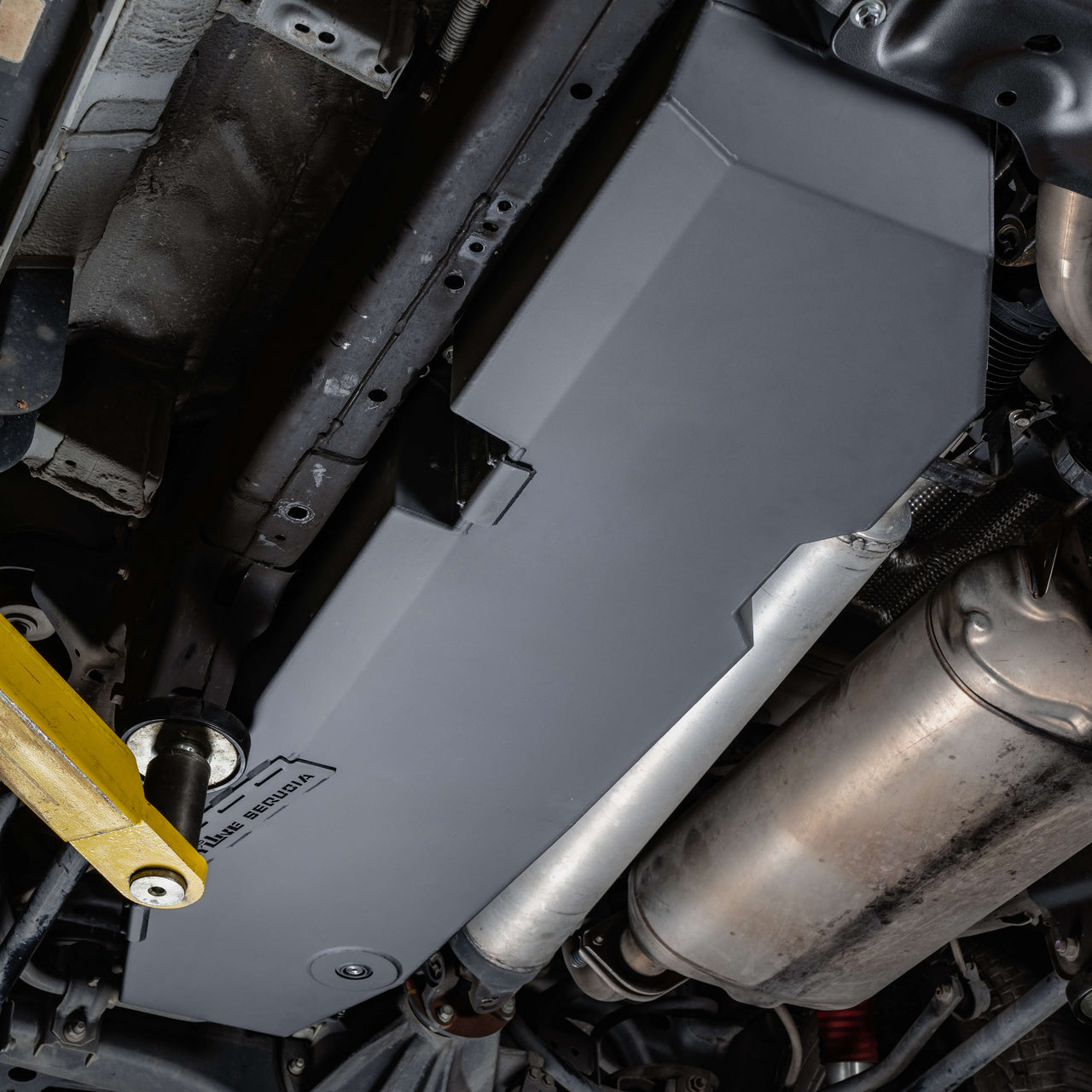

| Mounting Location | OEM tank location |
| Bolt-On Installation | Yes |
| Installation Guide | Available |
Shipping
| Specification | Value |
|---|---|
| Package Dimensions | 1840 × 510 × 450 mm (72.4 × 20.1 × 17.7 in) |
| Packaging | Foam-filled corrugated carton |
| Tank Net Weight | 51.5 kg (113.5 lb) |
| Packed Weight | 65 kg (143.3 lb) |
SKU
OS-SEQUOIA-CP-004
