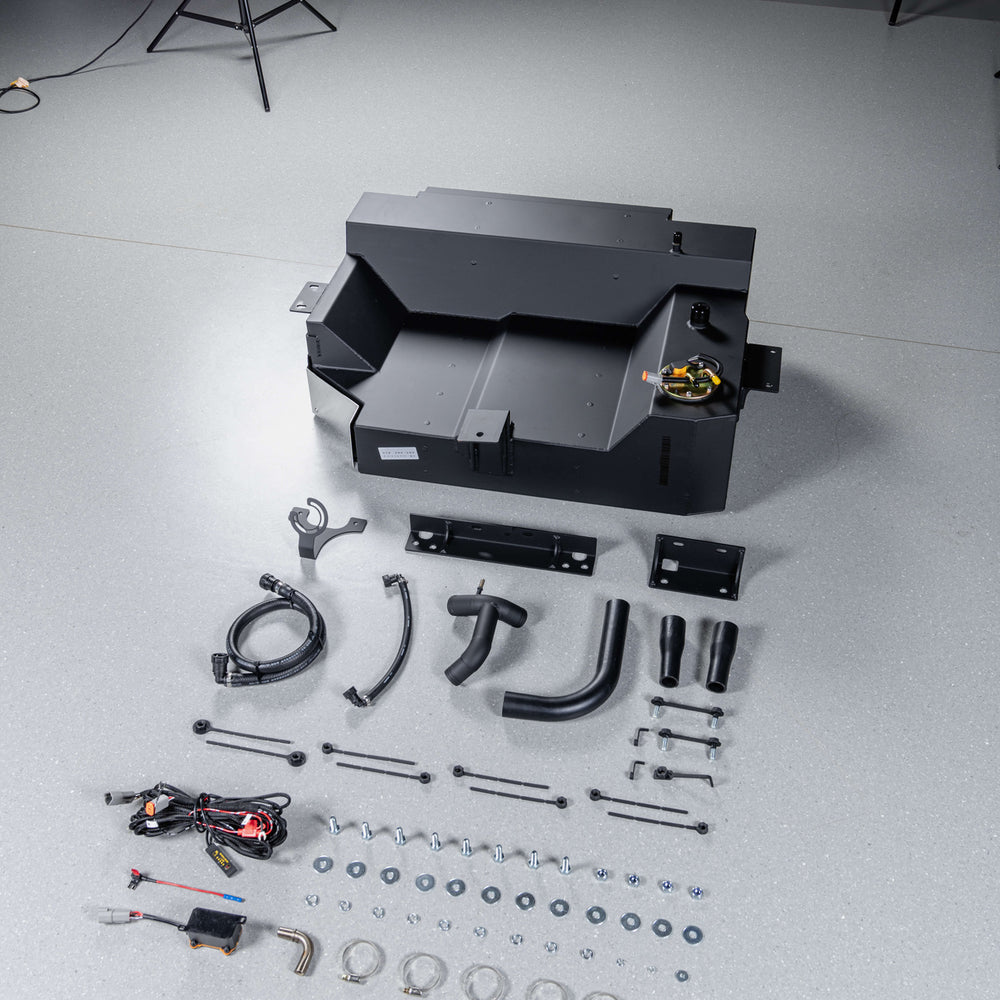

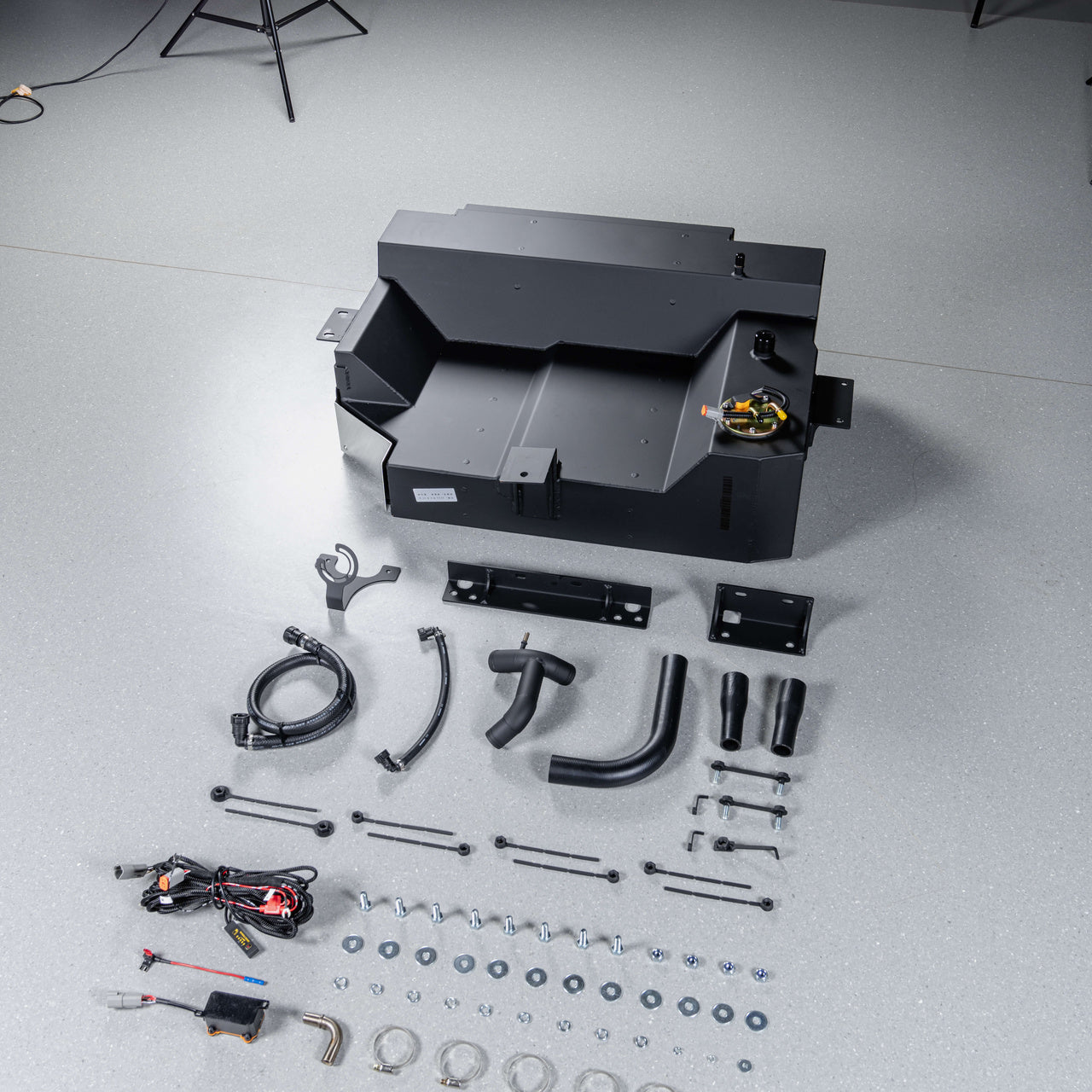

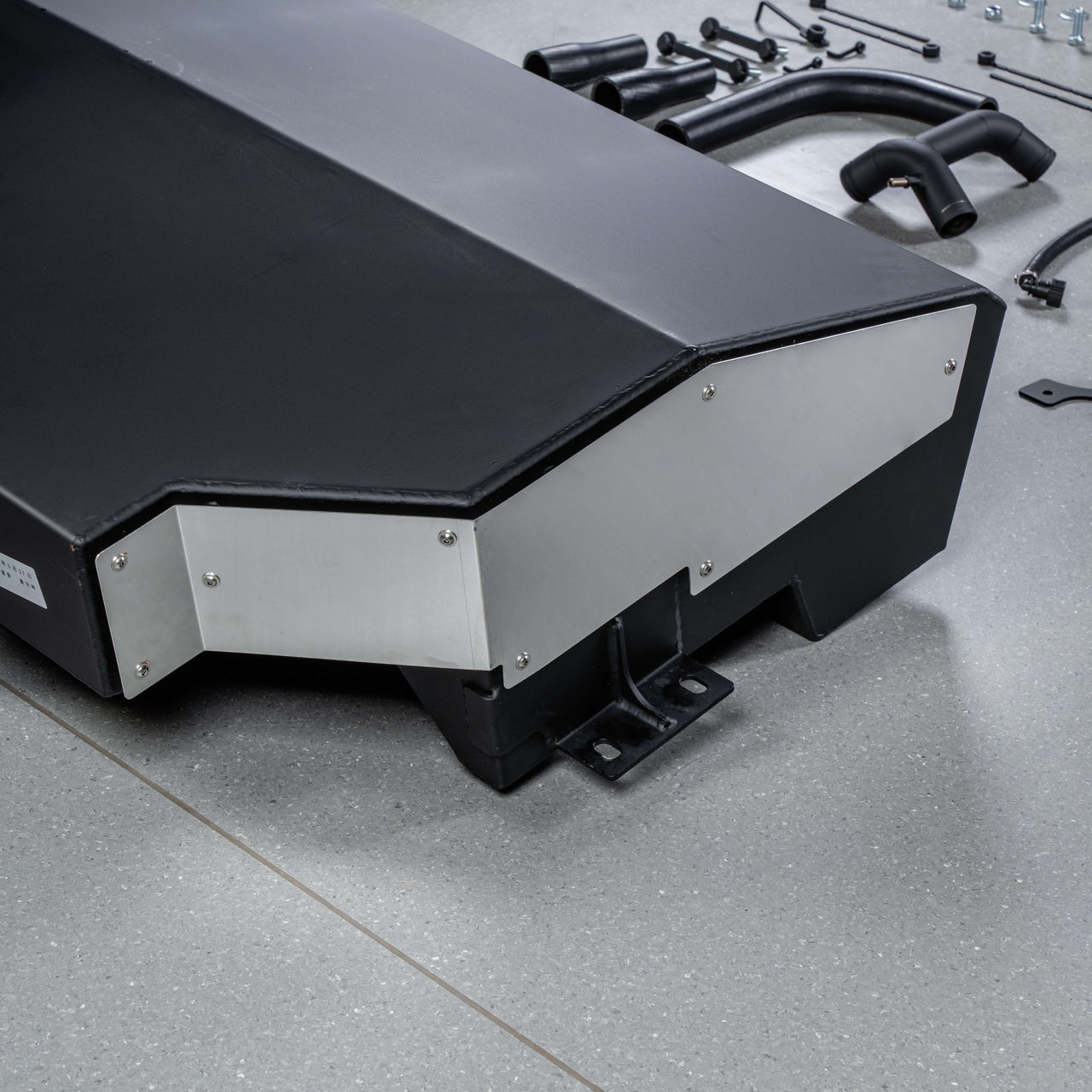

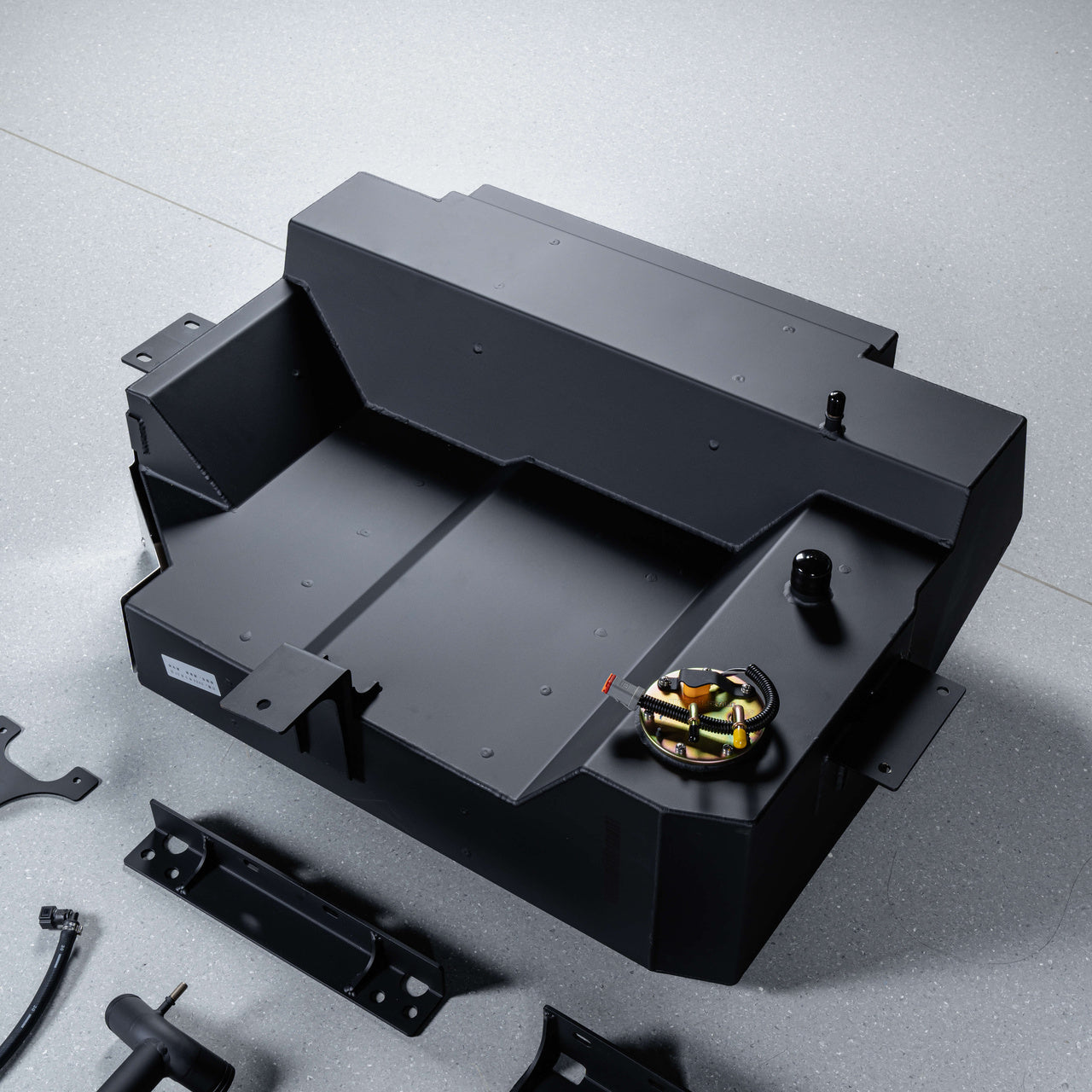

Auxiliary Fuel Tank
Product information, made easy to scan
Choose a section to review fitment, specifications, installation and shipping without scrolling through one long page.
Fitment
| Specification | Value |
|---|---|
| Brand | Tank |
| Vehicle | 500Hi4-T |
Overview
Auxiliary Fuel Tank for Tank 500Hi4-T. Product information is organized from the supplied specification sheet.
Key Features
| Specification | Value |
|---|---|
| Fuel Type | Gasoline |
| Capacity | 100 L (26.4 US gal) |
| Tank Type | Auxiliary Fuel Tank |

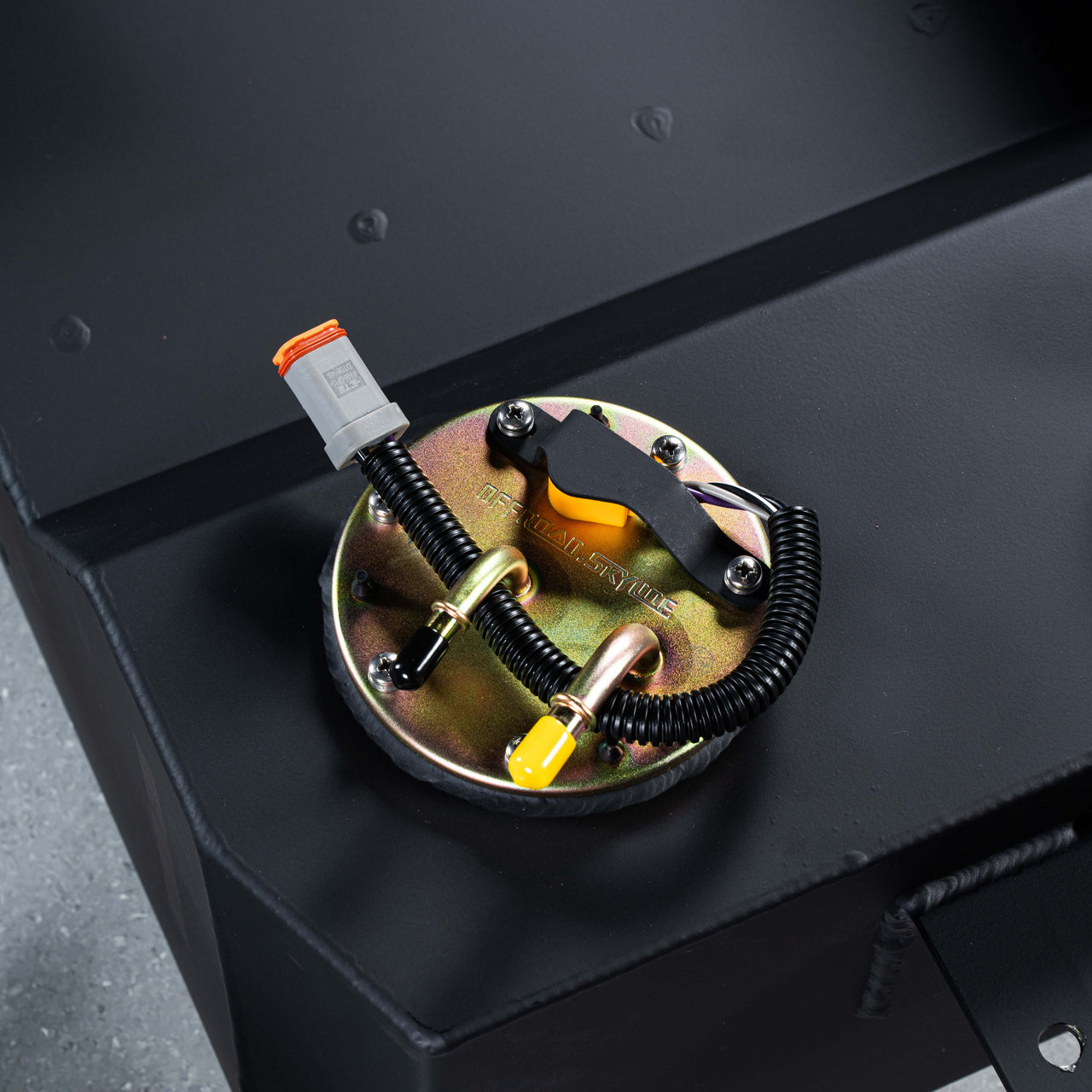

| Fuel Transfer Method | Internal transfer pump |
| Tank Material | 430 stainless steel |
| Finish | Matte-black powder coat |
Specifications
| Specification | Value |
|---|---|
| Tank Wall Thickness | bottom plate 3 mm (0.12 in) side plate 2 mm (0.08 in) |
| Bracket Thickness | 4 mm (0.16 in) 430 stainless steel |
| Welding Process | TIG welded |
| Internal Baffles | Internal anti-slosh baffles |

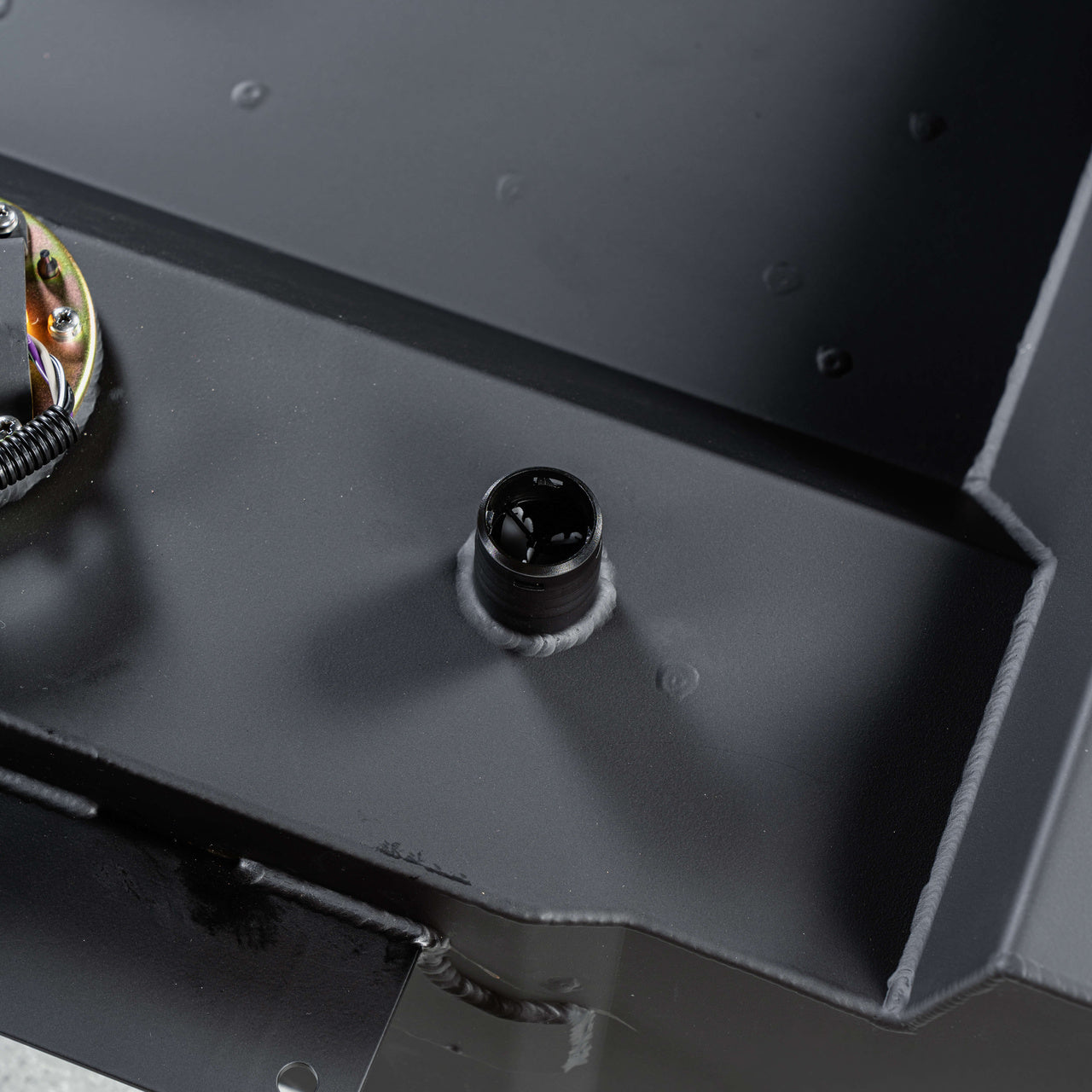

| Filler Neck | Single filler with tee fitting |
| Pre-Shipment Pressure Tests | 2 tests |
| Pump Activation Condition | Transfer while vehicle is stationary |
| Pump Control | Mobile app / control button |
| Transfer Rate | 120 L/h (31.7 US gal/h; laboratory data) |
| Pump Stop Condition | Manual stop when filling the main tank; automatic stop after 2 minutes when the auxiliary tank is empty |
| OEM Tank Capacity | 70 L (18.5 US gal) |
| Capacity Increase | 242.9% |
| Filled Tank Mass | 125 kg (275.6 lb) |
Installation
| Specification | Value |
|---|---|
| Mounting Location | Spare tire location |
| Bolt-On Installation | No |
| Installation Guide | Available |
Shipping
| Specification | Value |
|---|---|
| Package Dimensions | 1160 × 840 × 380 mm (45.7 × 33.1 × 15 in) |
| Packaging | Foam-filled corrugated carton |
| Tank Net Weight | 49 kg (108 lb) |
| Packed Weight | 61.7 kg (136 lb) |
SKU
OS-TK500-CP-006
