Replacement Main Fuel Tank
Product information, made easy to scan
Choose a section to review fitment, specifications, installation and shipping without scrolling through one long page.
Fitment
| Specification | Value |
|---|---|
| Brand | Tank |
| Model Year | 2026 |
| Vehicle | 500Hi4-Z |
Overview

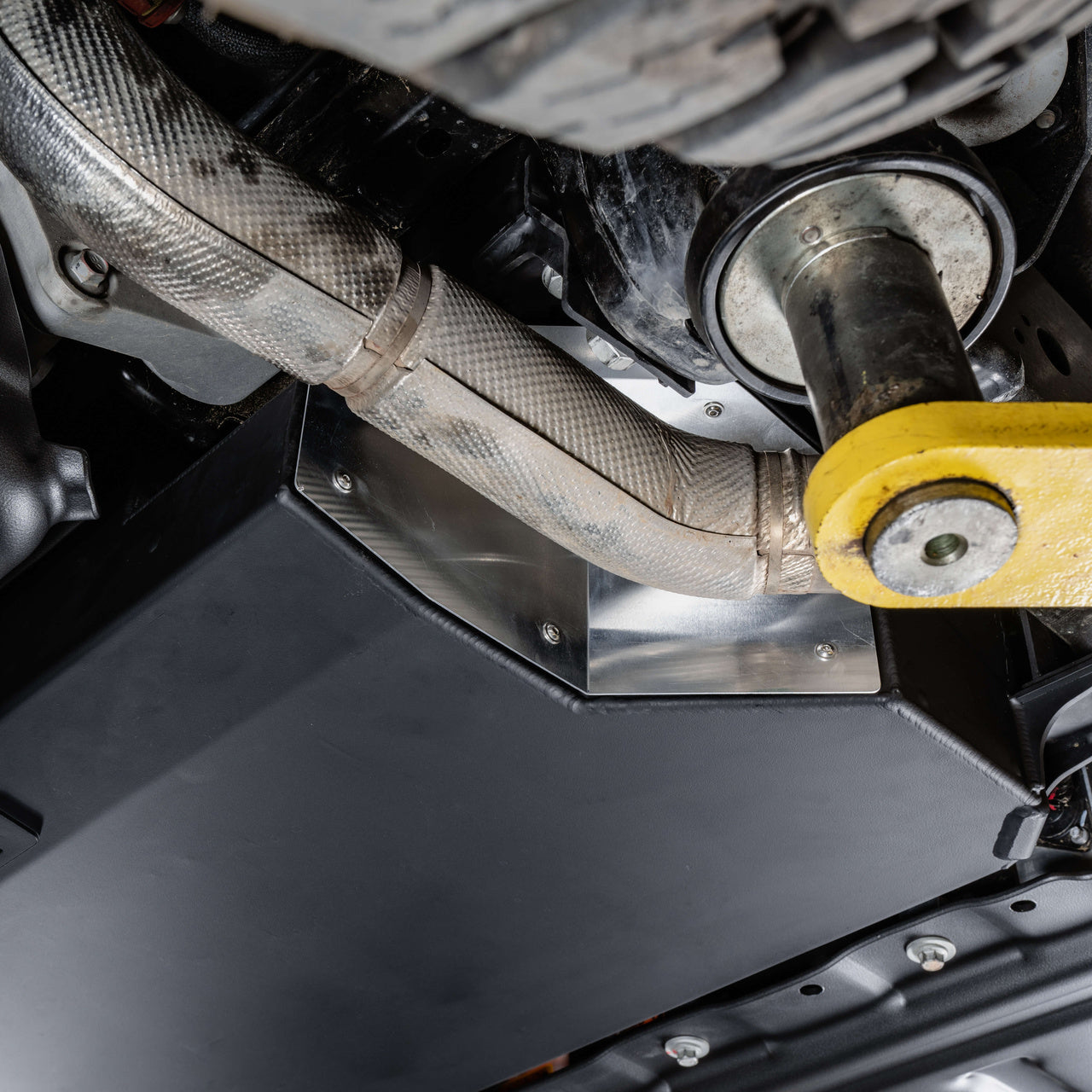

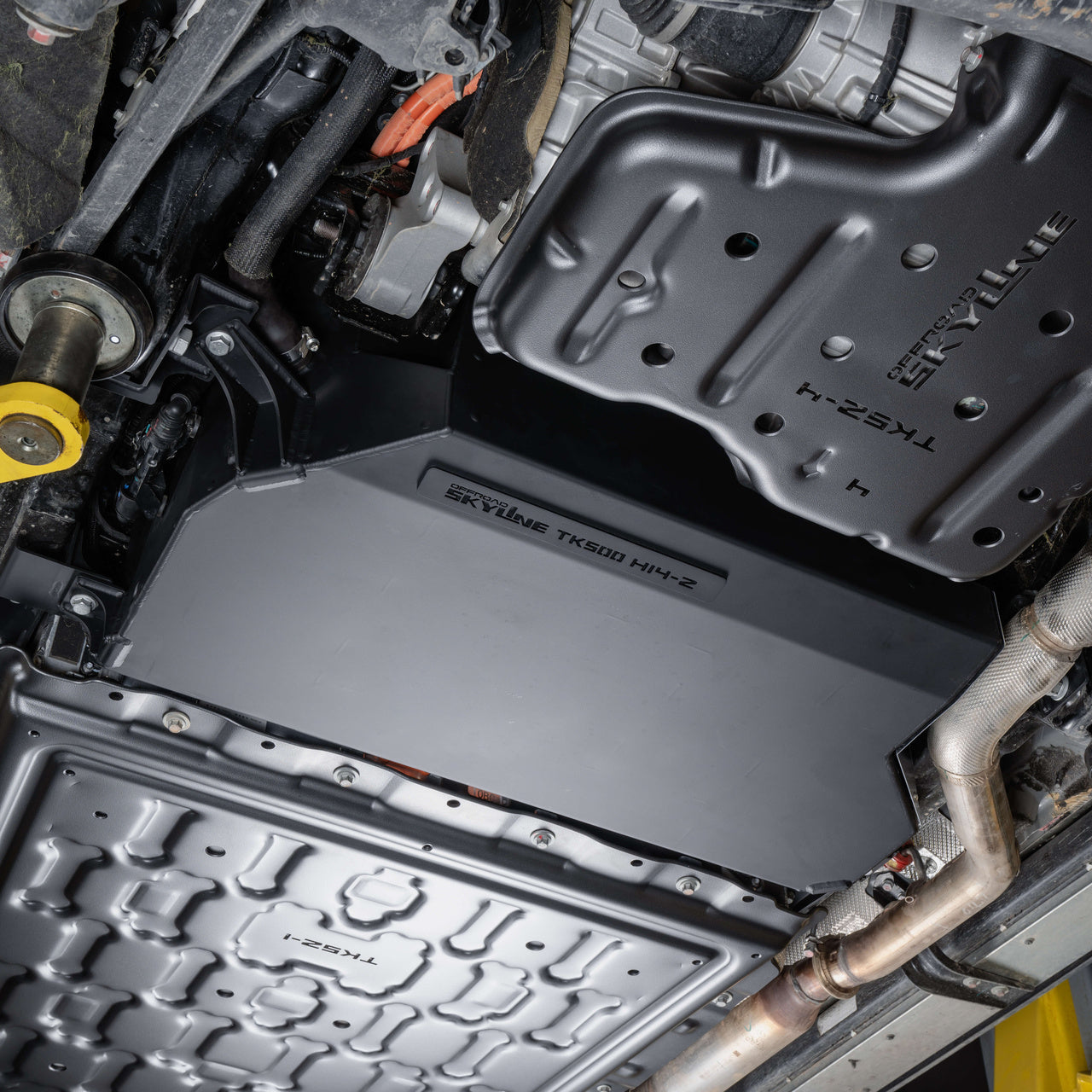

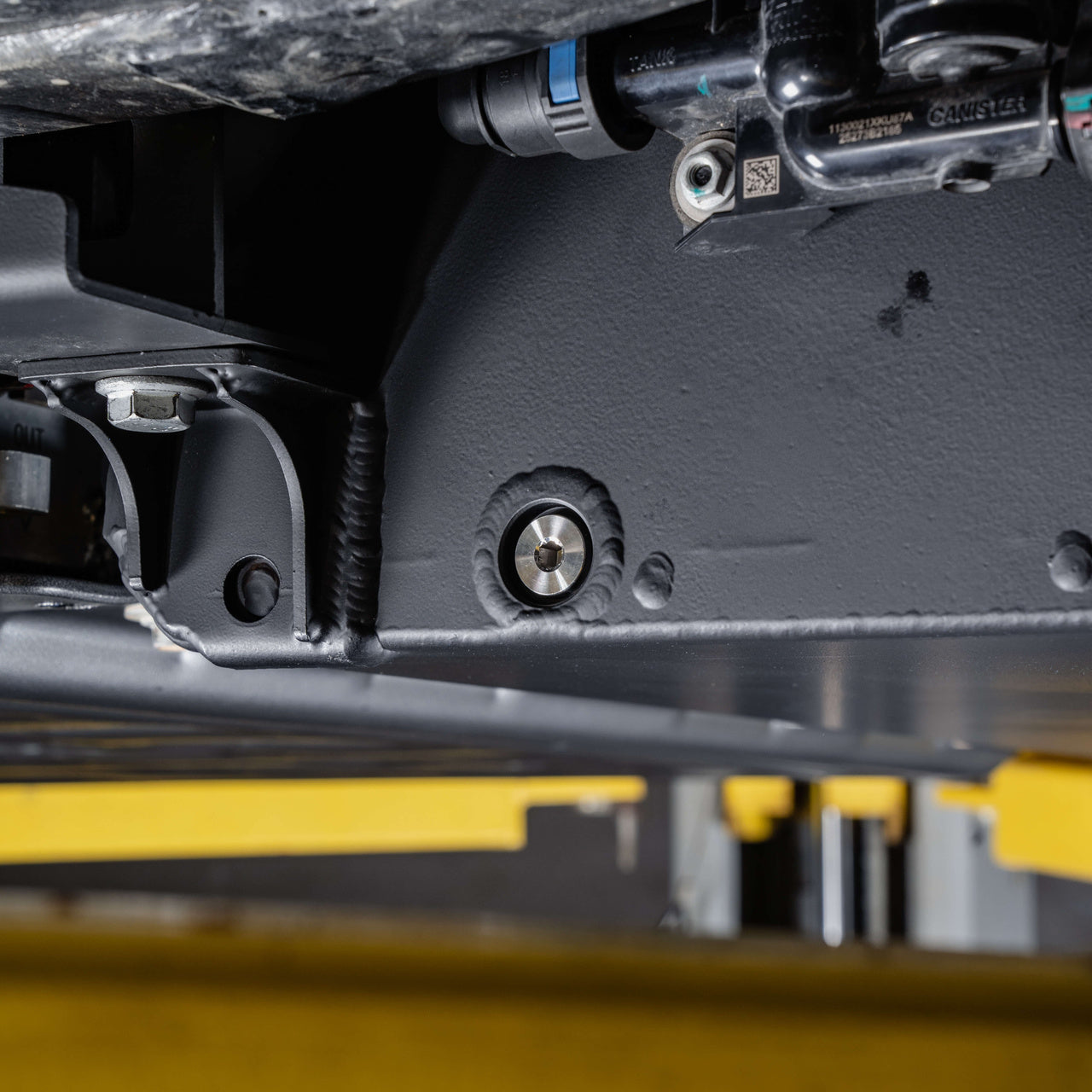

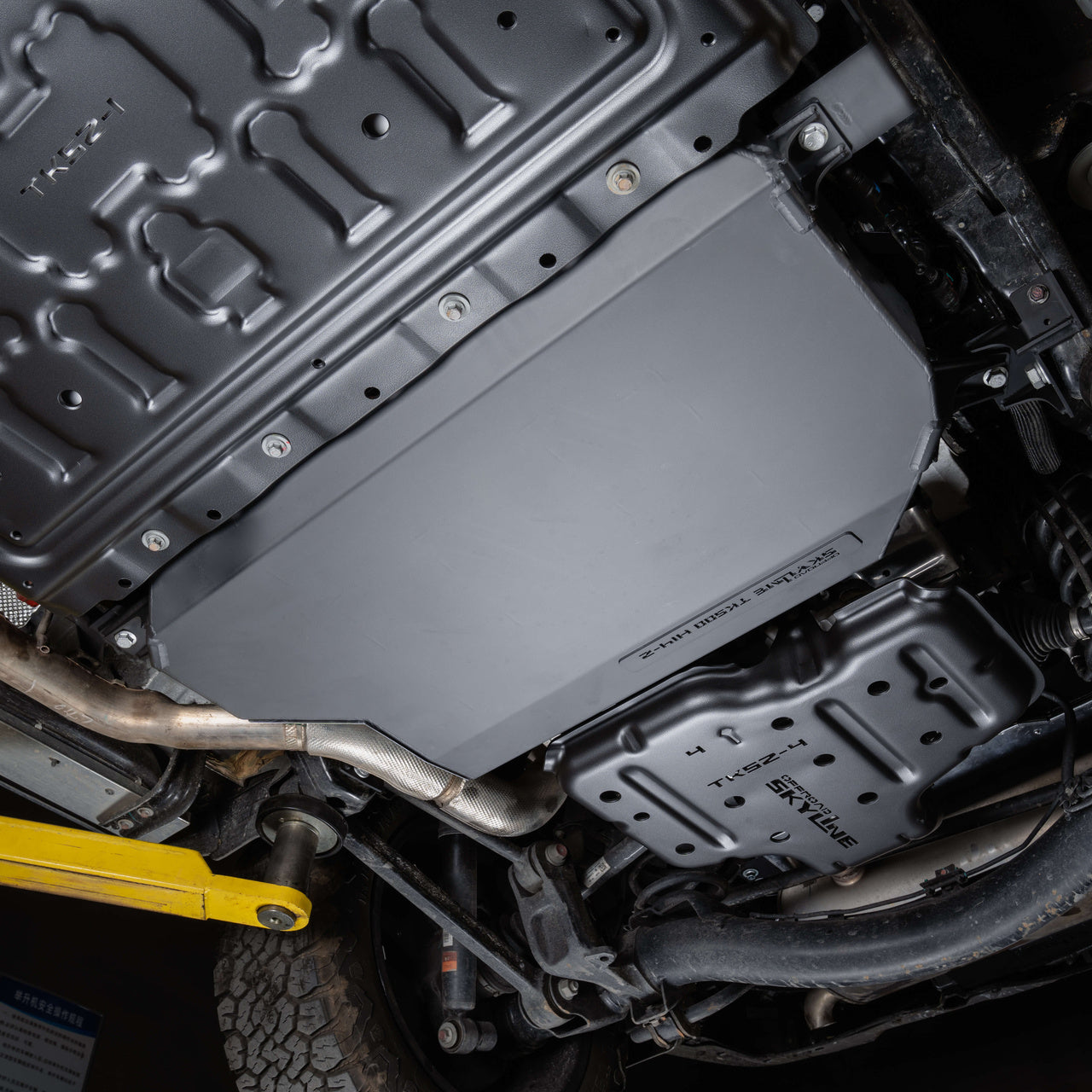

Replacement Main Fuel Tank for Tank 500Hi4-Z. Product information is organized from the supplied specification sheet.
Key Features
| Specification | Value |
|---|---|
| Fuel Type | Gasoline |
| Capacity | 110 L (29.1 US gal) |
| Tank Type | Replacement Main Fuel Tank |
| Fuel Transfer Method | OEM fuel pump |
| Tank Material | 430 stainless steel |
| Finish | Matte-black powder coat |
Specifications
| Specification | Value |
|---|---|
| Tank Wall Thickness | bottom plate 3 mm (0.12 in) side plate 2 mm (0.08 in) |
| Bracket Thickness | 4 mm (0.16 in) 430 stainless steel |
| Welding Process | TIG welded |
| Internal Baffles | Internal anti-slosh baffles |
| Filler Neck | OEM filler neck |
| Refueling Method | Same as OEM refueling procedure |
| Pre-Shipment Pressure Tests | 2 tests |
| OEM Tank Capacity | 77 L (20.3 US gal) |
| Capacity Increase | 42.9% |
| Filled Tank Mass | 121.3 kg (267.4 lb) |
Installation
| Specification | Value |
|---|---|
| Mounting Location | OEM tank location |
| Bolt-On Installation | Yes |
| Installation Guide | Available |
Shipping
| Specification | Value |
|---|---|
| Package Dimensions | 1140 × 840 × 485 mm (44.9 × 33.1 × 19.1 in) |
| Packaging | Foam-filled corrugated carton |
| Tank Net Weight | 37.7 kg (83.1 lb) |
| Packed Weight | 54.5 kg (120.2 lb) |
SKU
OS-TK500Hi4--Z-CP-001
